Brand:GreenTouch
Model:GT-TMA170A
MOQ:1 Pieces

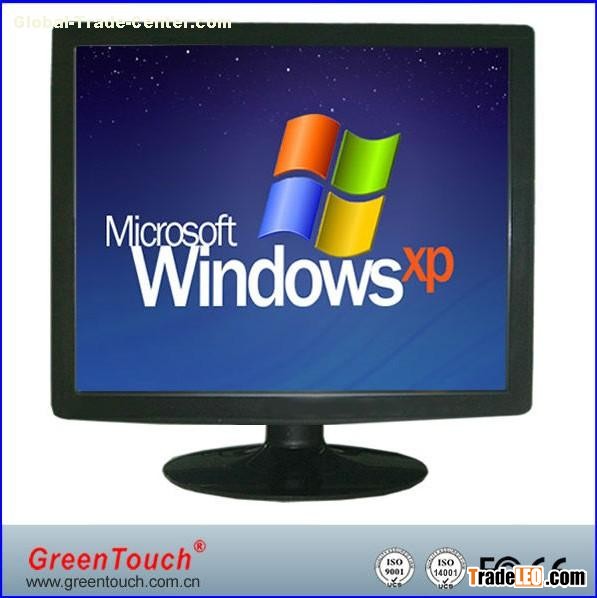

GreenTouch's desktop touch screen monitors size from 10.4 to 22 inches, use 4/5 wire resistive touch screen that independently developed and produced by our company, it has a high-quality, cost-effective, good durability, and stability character. Pure glass for touch screen also provides good clarity and light transmittance. Slim housing and stylish design base, made the touch monitor with compact and elegant appearance.
GreenTouch's desktop touch monitors Support AC 100 ～ 240V,50 ～ 60Hz,DC12V-3A. can accept a multitude of common video inputs including multiple VGA and DVI. very smoothly when touch and draw line.
> 1280x1024 Resolution,4:3 Screen Ratio
> TFT LCD panel,5ms Response Time
> Energy Efficient, Low Power Consumption
> Touch screen type is 4/5 wire resistive / SAW / IR / Optical touch screen
> High Contrast Ratio & Definition, Outstanding Vivid Color & Image Quality
> Our products have passed CE, FCC, RoHS certification!
| Model Number | GT-TMA170A |
| Display type | TFT LCD panel |
| Screen Ratio | 4:3 |
| Effective Display size | 340x274mm |
| Not including the bottom base size | 380x310X40mm |
| Including bottom base size | 380x370X40mm |
| Resolution | 1280x1024 |
| Touch screen type | 4/5 wire resistive/SAW/IR/Optical touch screen |
| Touch life | More than 5,000million times |
| Touch object | Finger or touch pen |
| Touch interface | USB or RS232 |
| Touch response time | 8ms |
| Color | 16.7Million |
| Brightness | LCD panel:500cd/m2;LCD panel with touch screen:430cd/m2 |
| Contrast ratio | 1000:1 |
| Response time | 5ms |
| Power comsuption | 21w |
| Pixel | 0.297*0.297mm |
| Mean Time Between Failure (MTBF) | 30,000 hours |
| Environment | Operating temperature：0 to 50°C Storage temperature：-20 to 60°C |
| Operating humidity：20% to 80% Storage humidity：10% to 90% | |
| Scan Frequency（L/F） | Horizontal：30～80KHz ，Vertical: 55～75Hz |
| Interface Type | DVI,VGA |
| Power | AC 100 ～ 240V 50 ～ 60Hz,DC 12V-3A |
| Certification | CE/FCC/RoHS |
| Application | office, school, POS,hospital,government,industry,exhibition,advertisement |
