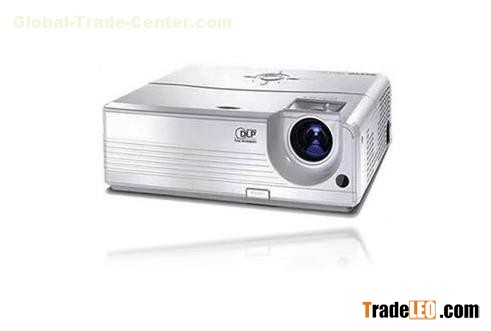

Brand:LuxA
Model:LT-PDx583
MOQ:50 Pieces
Send Inquiry
| Specification | |||
| • Model: | LTPD-X583 | ||
| • Light Valve | Single 0.55" DLP panel(Type-X) | ||
| • Brightness | 3500 ANSI Lumen (Engineer Typical 3000 ANSI Lumen) | ||
| • Contrast Ratio | 2500:1 | ||
| • Number of Pixels | XGA- 1024 x 768 | ||
| • Lamp | Philips 260W E20.6 ,3000Hrs Life | ||
| • Displayable Color | 16.8 million; 24-bit color | ||
| RGB WY 5 segment color wheel (120Hz) | ||
| • Projection Lens | 1:1.2X manual zoom | ||
| • Projection Screen Size | 33-300" | ||
| • Projection Distance | 1.2-10.8m | ||
| • Video Compatibility | NTSC, NTSC 4.43, PAL, PAL-N, PAL M, SECAM and HDTV (480P; 576P, 720P; 1080i,1080p) compatible, Composite video, and S-video capability | ||
| • Image Ratio | 4:3 and 16:9 | ||
| • keystone correction | 15 Degree | ||
| • H. Frequency | 15kHz-100kHz horizontal scan | ||
| • V. Frequency | 3Hz-120Hz vertical refresh | ||
| • Power Supply | Universal 90–264V AC 50–60 Hz with PFC input | ||
| • Noise Level | 34dBA(normal mode); 32dBA(ECO mode) (TBD) | ||
| • Power Consumption | 250W | ||
| • Weight | 6lbs(2.7Kg) | ||
| • Dimensions (W x H x D) | 271 x 223 x 90 mm | ||
| • Environmental | Operating temperature: 5oC–35oC (41oF–95oF) Humidity: 80% maximum Storage temperature: –20oC to 60oC (–4oF to 140oF) Humidity: 80% maximum | ||
| • I/O Connectors | Power: AC power input socket Computer input: Two D-sub for analog input/ YPbPr,HDTV input signals Computer output: one D-sub for analog output Video input: one mini-DIN 4-pin S-video input, one RCA jack for composite video input Control input : one USB for firmware download RS232 : one mini-DIN 6-pin Audio : 3.5mm phone jack w/ one 2W speaker | ||
| • Accessory | Remote controller w/Laser pointer x1; Powercord x1; VGA (D-sub) cable: x1; Owner manual x1; Quick Start Guide x1; Option: Composite cable x1; S-video cable x1; Soft carry bag x1; | ||
| • Warranty: | Projector 2 Years,lamp 6 Months(Or 300hrs, ) | ||
