Brand:Sanyisan

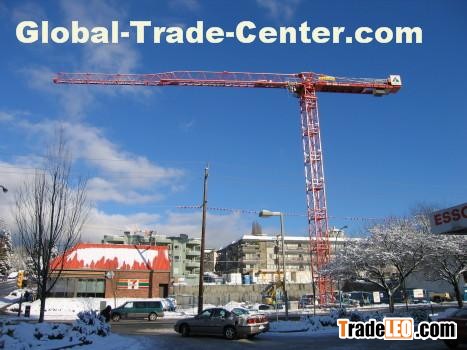

Model:PT6313
MOQ:1 Sets
Send Inquiry
| Work grade of mechanisms | Hoisting mechanism | M5 | |||||
| Slewing mechanism | M4 | ||||||
| Trolleying mechanism | M4 | ||||||
| Radius (m) | Min. 2.5 | Max. 63 | |||||
| Hoisting height (m) | Independent | Attaching | |||||
| 50 | 181.3 | ||||||
| Max. Load (t) | 8 | ||||||
| Hoisting mechanism | Type | QEW-880D | |||||
| Falls | α=2 | α=4 | |||||
| Load and speed ( t and m/min0 | 2/80 | 4/40 | 4/40 | 8/20 | |||
| Power (Kw) | 30/30 | ||||||
| Trolleying mechanism | Speed (m/min) | 0~55 | |||||
| Power (Kw) | 5.5 | ||||||
| Slewing mechanism | Speed (r/min) | 0~0.8 | |||||
| Power (Kw) | 4.0×2 | ||||||
| Jacking mechanism | Speed (m/min0 | 0.58 | |||||
| Power (Kw) | 7.5 | ||||||
| Work pressure (MPa) | 25 | ||||||
| Balanced weight | Jib (m) | 53 | 58 | 63 | |||
| Load (t) | 17 | 18.5 | 20 | ||||
| Total power (kW) | 43.5 (without hydraulic system) | ||||||
| Work temperature | -20~+40 | ||||||
