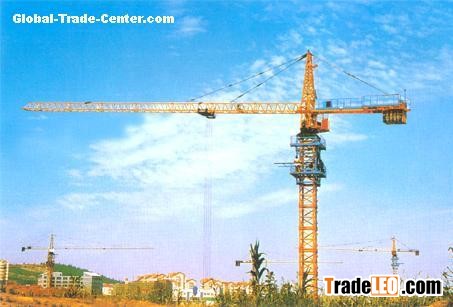

QTZ63 (TC5610) tower crane
1. Max. Load: 6t
2. Jib length: 56m
3. Tip load: 1.0t
4. Free standing height: 40m
5. Max. Height: 150m
6. Mast section: 1.833*1833. *2.5/1.6*1.6*2.5m
| Rated lifting torque | kN. m | 630 | |||
| Max. lifting capacity | t | 6 | |||
| Working range | m | 3~56 | |||
| Lifting Height | Independent | 40.2 | |||
| Adhered | 151.2 | ||||
| Lifting speed | Double magnification | m/min | 80/40 | ||
| Quadruple magnification | 38/19 | ||||
| Slewing speed | r/min | 0.637 | |||
| Trolleying speed | m/min | 44/22 | |||
| Climbing speed | 0.4 | ||||
| Min. stable descending speed | < 7 | ||||
| Overall dimensions | Foundation frame | m | 8× 8 | ||
| Overall height | Independent | 50.892 | |||
| Adhered | 160.892 | ||||
| Jib end to the swiveling center | 56.17 | ||||
| Balance tip to swiveling center | 12.39 | ||||
| Total weight | Structure weight | Independent | t | 40.49 | |
| Adhered | 80.87 | ||||
| counterweight | 18.34 | ||||
| Total motor capacity | kW | 41.52 | |||
| Allowed operating temperature | º C | -20~+40 | |||
| Power supply parameters | 50Hz | ~380V± 10% | |||
