Brand:Minglong
Model:TC7032
MOQ:1 Sets
Send Inquiry

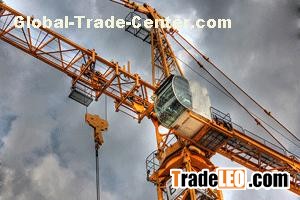

K35/32(TC7032) building tower crane:
1. Stationary height: 51.7m
2. Travelling height: 56.6m
3. Max. Load: 14t
4. Boom length: 70m
5. Mast section: 2.0*2.0*3.0m
6. Tip load: 3.2t
| K35/32(TC7032) building tower crane Technical Parameter | ||||||||||
| Boom length | 70 m | |||||||||
| Mast Section | 2*2*3 m | |||||||||
| Max.capacity | 14t | |||||||||
| Mechanism | 2 falls | 4 falls | Drum capacity | Motor | ||||||
| Hoisting | m/min | 0-22 | 0-44 | 0-60 | 0-11 | 0-22 | 0-30 | 500*>550m | 55KW | |
| t | 7 | 3.5 | 1.75 | 14 | 7 | 3.5 | ||||
| m/min | 0-56 | 0-112 | 0-168 | 0-28 | 0-56 | 0-84 | 90KW | |||
| t | 7 | 3.5 | 1.75 | 14 | 7 | 3.5 | ||||
| Trolleying | m/min | 0-55 | 4KW | |||||||
| Slewing | r/min | 0-0.76 | 9*2KW | |||||||
| Traveling | m/min | 16/32 | 5.2*4KW | |||||||
| Power Supply | 380v 50Hz/440v 60Hz | |||||||||
| Necessary electric power | 55LVF;100KVA | |||||||||
