Brand:MINGLONG
Model:TC7050
MOQ:1 Sets
Send Inquiry

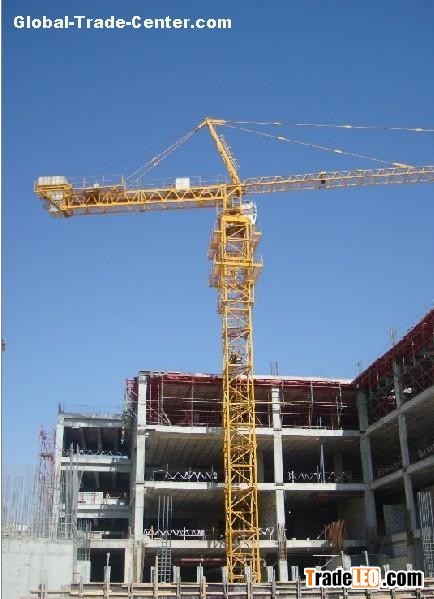

Tower crane K50/50(TC7050):
Stationary height: 78.9m
Travelling height: 80.09m
Max lifting weight: 20 t
Types: Freestanding height, attached, travelling
Jib length: 35m/40m/45m/50m/60m/70m
Mast section: 2.5*2.5*6.0m.
| K50/50(TC7050) tower crane Technical Parameter | |||||||||
| Boom length | 70 m | ||||||||
| Mast Section | 2.5m*2.5 m*6.0m | ||||||||
| Max.load | 20t | ||||||||
| Mechanism | 2 falls | 4 falls | Drum capacity | Motor | |||||
| Hoisting | m/min | 0-40 | 0-80 | 0-120 | 0-20 | 0-40 | 0-60 | 600m | 90KW |
| t | 10 | 5 | 2.5 | 20 | 10 | 5 | |||
| m/min | 0-60 | 0-120 | 0-180 | 0-30 | 0-60 | 0-90 | 600*>600m | 132KW | |
| t | 10 | 5 | 2.5 | 20 | 10 | 5 | |||
| Trolleying | m/min | 0-55 | 9.2KW | ||||||
| m/min | 13.5/42.84 | 2.6/7.5/9KW | |||||||
| Slewing | r/min | 0-0.6 | 145Nm*2 | ||||||
| Traveling | m/min | 0-30 | 5.5*6KW | ||||||
| Power Supply | 380v 50Hz/440v 60Hz | ||||||||
| Necessary electric power | 90LVF;155KVA | ||||||||
