Brand:MINGLONG
Model:TC6020
MOQ:1 Sets
Send Inquiry

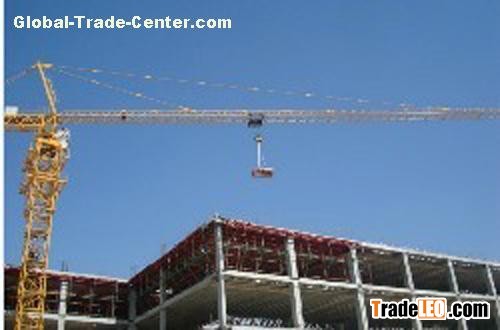

TC6020 tower crane
Max. Load: 10t
Jib length: 60m
Tip load: 2.0t
Free standing height: 52.15m
Max. Height: 184.15m
Mast section: 2.0*2.0*3.0m
The adjustable bases provide a choice of method of installation
-on fixing angles
-on cross-shaped base
-on travelling gear
Or as a climbing crane.
| Mechanisms | 2 falls | 4 falls | Motor(Kw) | Drum | |
| Hoisting | m/min | 50/100 | 25/50 | 37/37 | 486m |
| t | 5/2.5 | 10/5 | |||
| Trolleying | m/min | 58.6/29.3/8.79 | 5/3.7/1.1 | ||
| Slewing | r/min | 0.7 | 3.7*2 | ||
| Jacking | m/min | 0.4 | 7.5 | ||
| Power supply | 380V/50HZ | 440V/60HZ | |||
| Power capacity | 56.9 | ||||
