Brand:MINGLONG
Model:TC 6315
MOQ:1 Sets
Send Inquiry

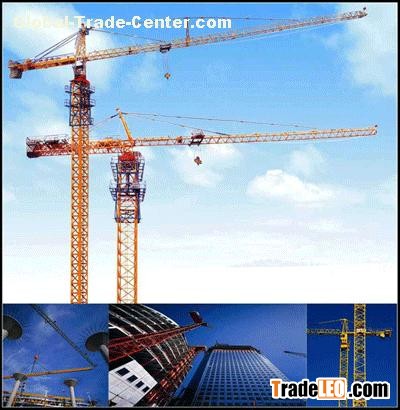

| QTZ125(TC6315) TOWER CRANE | |||
| Rated lifting moment | KN.M | 1250 | |
| Max. capacity | T | 8 | |
| Boom length | M | 2.5-63 | |
| Tip load | T | 1.5 | |
| Hositing height | Independent | M | 50 181 |
| Attached | M | ||
| Hositing speed | 2 falls | M/MIN | 40/80 |
| 4 falls | M/MIN | 20/40 | |
| Trolleying speed | M/MIN | 0-55 | |
| Slewing speed | R/MIN | 0-0.8 | |
| Climbing speed | M/MIN | 0.58 | |
| Structure self-weight | T | 60.8 | |
| Total installed capacity | KW | 43.5 | |
| Balance weight | T | 20 | |
| Working temperature | Degree | -20~40 | |
| Working voltage | V | 380±%5 | |
| Max working wind pressure | N/M2 | 250 | |
