Brand:MINGLONG
Model:TC 7027
MOQ:1 Sets
Send Inquiry

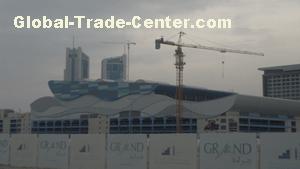

TOPKIT TOWER CRANE TC7027
Max. Load: 16t
Jib length: 70m
Tip load: 2.7t
Free standing height: 51.8m
Mast section: 2.0*2.0*3.0m
Type: Stationary, inner-climbing, external climbing, travelling tower crane
| Mechanisms | ||||||||||
| m/min | t | m/min | t | drum | ch-PS hp | kw | ||||
| Hoisting | 16t | 2 falls | 4 falls | |||||||
| 100LVF40 Opyima | 0-44 | 8 | 0-22 | 16 | 1009m | 100 | 75 | |||
| 0-56 | 6 | 0-28 | 12 | |||||||
| 0-96 | 3 | 0-48 | 6 | |||||||
| 0-116 | 2 | 0-58 | 4 | |||||||
| 70RCS40 | 0-30 | 8 | 0-15 | 16 | 586m | 70 | 51 | |||
| 0-60 | 4 | 0-30 | 8 | |||||||
| Trolleying | 6DVF6 | 0-42(16t) | 5.5 | 4 | ||||||
| 0-84(8t) | ||||||||||
| 0-100(4t) | ||||||||||
| Slewing | RCV185 | 0-0.7 tr/min rpm | 2x9 | 2x6.6 | ||||||
| Travelling | R≥13m | RT443 | 12.5-25 | 4x7 | 4x5.2 | |||||
| Miains supply | CE138 IEC38 | 400V(+6%-10%) 50HZ | ||||||||
| Necessary electric power | 100LVF:125KAV 70LVF:100KAV | |||||||||
| Generator set | ||||||||||
