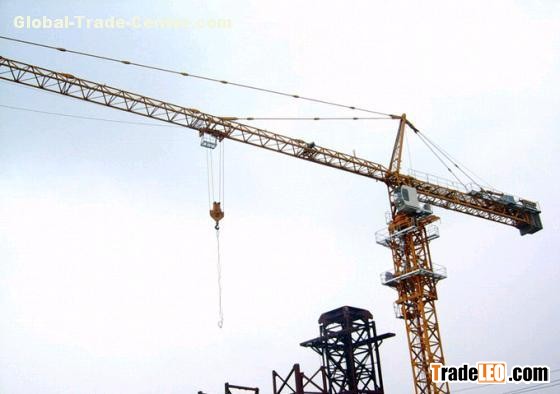

QTZ100(TC6012) tower crane
Dimension of QTZ100(TC6012) tower crane mast section is 1.833*1.833*2.5m, the main material applies 125*125*12 buckled square or 135*135*12 square steel tube.
1. Max. Load: 8t
2. Jib length: 60m
3. Tip load: 1.2t
4. Free standing height: 50m
5. Max. Height: 180m
| QTZ100(TC6012) TOWER CRANE | |||
| Rated lifting moment | KN.M | 1000 | |
| Max. lifting load | T | 8 | |
| Working range | M | 2.5-60 | |
| Tip load | T | 1.2 | |
| Hositing height | Independent | M | 50 |
| Attached | M | 180 | |
| Hositing speed | 2 falls | M/MIN | 12/40/80 |
| 4 falls | M/MIN | 6/20/40 | |
| Trolleying speed | M/MIN | 10/30/60 | |
| Slewing speed | R/MIN | 0.6 | |
| Climbing speed | M/MIN | 0.7 | |
| Structure self-weight | T | 45 | |
| Total installed capacity | KW | 47.5 | |
| Balance weight | T | 15.3 | |
| Working temperature | Degree | -20~40 | |
| Working voltage | V | 380±%5 | |
| Max working wind pressure | N/M2 | 250 | |
