Brand:Sanyisan
Model:TC6018
MOQ:1 Sets
Send Inquiry

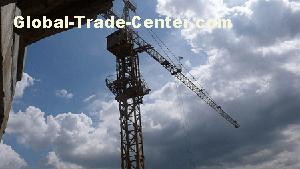

Tower crane TC6018
Max. Load: 10t
Boom length: 60m
Tip load: 1.8t
Free standing height: 50m
Max. Height: 200m
| Rated Lifting Torque | kN. m | 1250 | ||||
| Maximum Lifting Load | t | 10 | ||||
| Work radius | m | 3-60 | ||||
| Lifting Height | Independent | 50 | ||||
| Attaching | 180 | |||||
| Lifting Speed | 2-falls | m/min | 101.5/51.83 | |||
| 4-falls | 49.11/25.08 | |||||
| Slewing Speed | r/min | 0.65 | ||||
| Trolleying Speed | m/min | 58.6/29.3/8.79 | ||||
| Climbing Speed | 0.4 | |||||
| Minimum Stable Falling Speed | ≤ 5 | |||||
| Machine Dimension | Chassis | m | 8× 8 | |||
| Total Height | Independent | 60 | ||||
| Attaching | 190 | |||||
| Tip of jib to slewing center | 63.372 | |||||
| Tip of balanced jib to slewing center | 14.82 | |||||
| Self-weight of whole crane | Structure Weight | Independent | t | 63.508 | ||
| Attaching | 125.628 | |||||
| Balance Weight | 20.8 | |||||
| Total Capacity of Motor | kW | 60.85 | ||||
| Allowable Work Temperature | | -20-+40 | ||||
| Power Supply Parameter | 50Hz | -380V± 10% | ||||
