Introduction

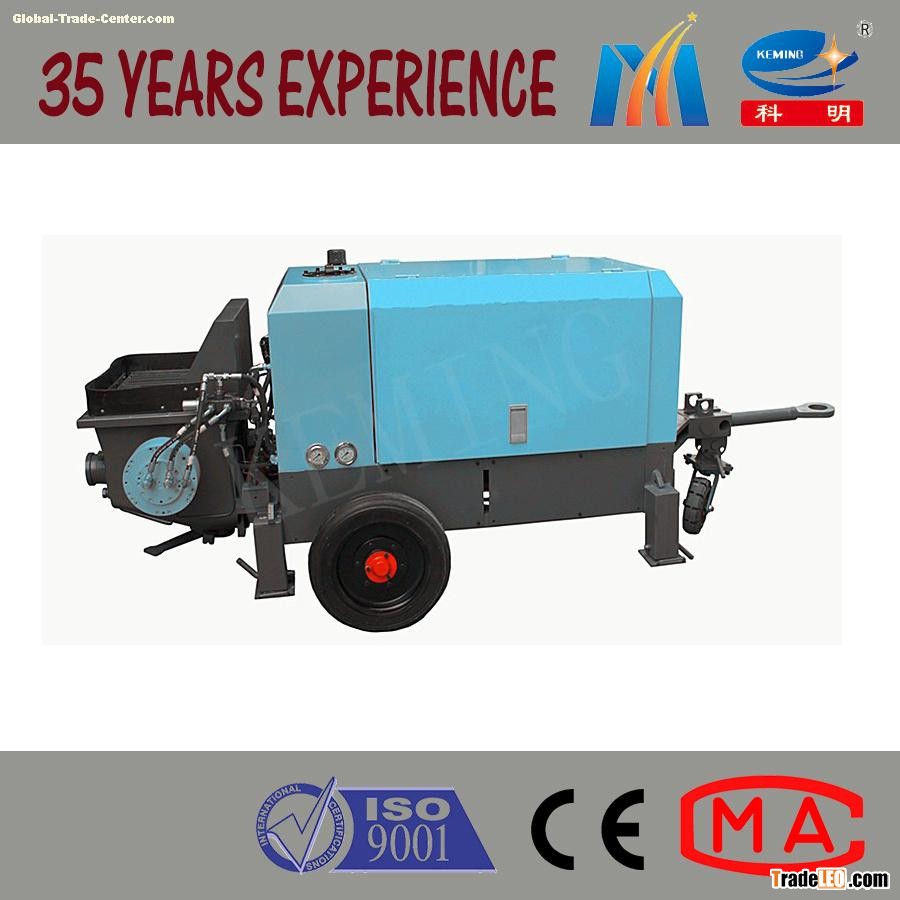

* Full Hydraulic Wet Shotcrete Pump
* Full Hydraulic Mortar Concrete Pump

* including push-pull mechanism,hopper and stirring apparatus,concrete distribution valve,underbed and

traveling mechanism,hydraulic transmission system,electrical system,machine hood and conveying pipe,

shotcrete auxiliary system and metering pump.

Performance Features

* high efficiency: full hydraulic pumping technic, reliable performance.

* long spraying distance: 200m horizontally and 80m vertically.

* continuously adjustable flux (stepless speed change).

* adjustable accelerator adding volume (stepless speed change within 0~9%).

* low fitting consumption: main wearing parts can spray for no less than 3000m3 .

* long service life of wearing parts.

* flexible  movement, convenient operation and maintenance.

Application Scope

* convey fine aggregate concrete and mortar for high buildings.

* grout heat-insulated lightweight foamed cement, mortar floor heating, and self leveling for ground architecture.

* spray plain concrete and fiber concrete in engineering construction.

* convey and spray refractory and thermal insulation material.

* spray afforestation soil in ecological environment construction.

* pressure perfussion for foundation piles, backfill in overbroken tunnels, railway slope supporting, and disaster management.
