Brand:Aleono
Model:RT40
MOQ:1 Sets
Send Inquiry

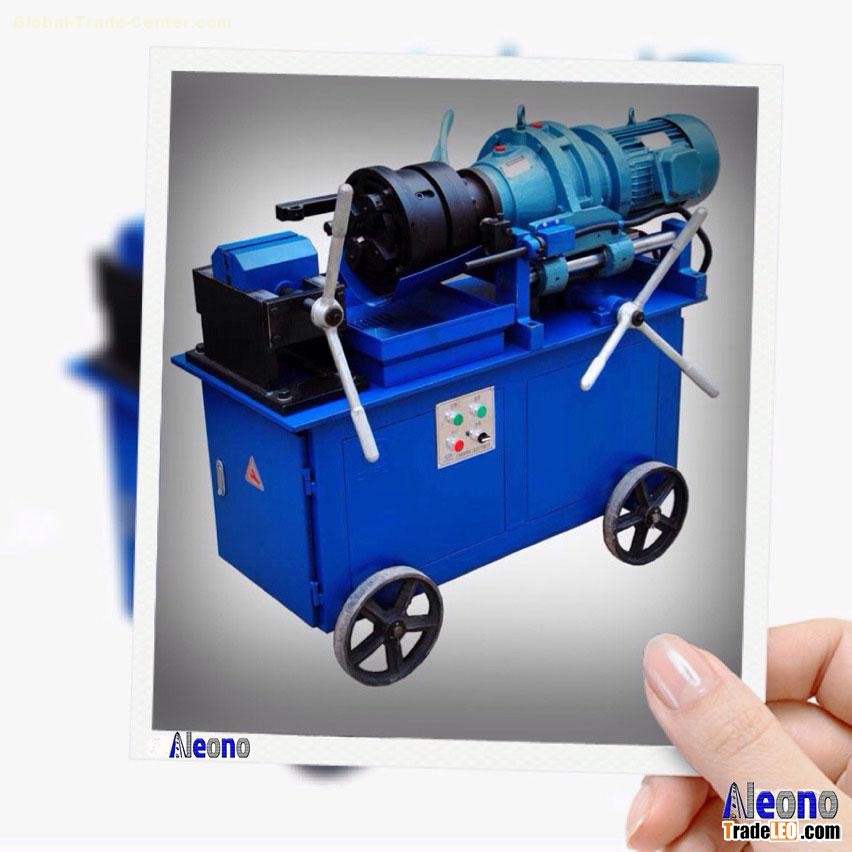

Machine Function:Machine Function: ALEONO RT40 REBAR THREAD ROLLING MACHINE is used to strip rebar rib first and roll parallel thread on rebar end. After that two threaded rebar sectors are connected by rebar coupler. It can process HRB335, HRB400, HRB500 reinforced bar with diameter 16-40mm. The max thread length is 80mm.
| Model: | RT40 | Rebar Diameter: | 16-40MM |
| Motor Power: | 4KW 8A | Voltage: | 3-380V 50HZ |
| Thread Angle: | 60/75° | Thread Pitch: | 2.5-3.5MM |
| Spindle Speed: | 48-82 r/min | Max Thread Length: | 80MM |
| Dimension: | 1*0.7*0.9M | Net Weight: | 400kg |
| Certification: | ISO9001-2008 | Package: | Wooden Case, Iron frame |
