Brand:HAOSEN
Model:-
MOQ:1 Sets
We provide so many specifications of floor deck roll forming machine with best price and service.

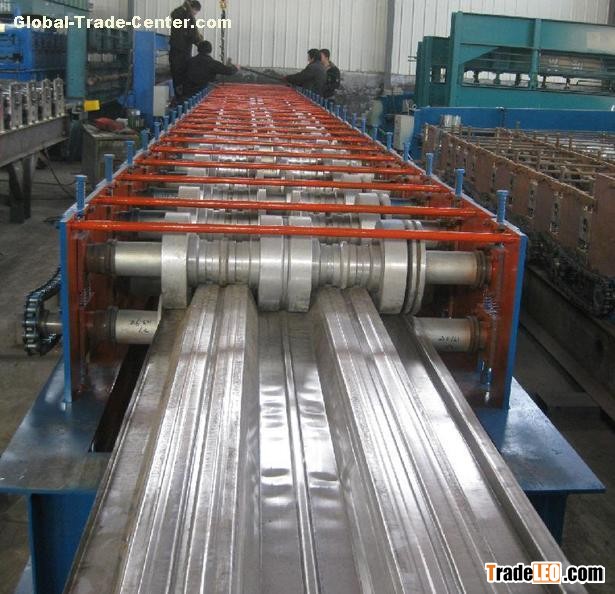

Composition of Floor deck roll forming machine
Manual de-coiler
Roll forming main machine
PLC control system
Hydraulic station
Cutting system
Manual out table
Hydraulic pressing system
Main parameters for the machine
| Material of shaft | 45# steel ,by heat treatment |
| Shaft diameter | 90mm |
| Main machine frame | 400 H steel |
| Shear Mould | Gr12 |
| Number of forming rollers | 24 rows |
| Transportation system | Chain transportation |
| Thickness of chain | 0.6inch |
| Main motor power | 18kw |
| Pump station power | 7.5kw |
| Forming speed | 8-10m/min |
| Rolling thickness | 0.8-1.5mm |
| Computer system | PLC control |
| Overall dimension | 14m x 1.5m x 1.3m |
| Weight | 13000kg |
Special size can be made according to customer’s requirement.
