Brand:Mingwei
Model:TC5515
MOQ:1 Sets
Send Inquiry

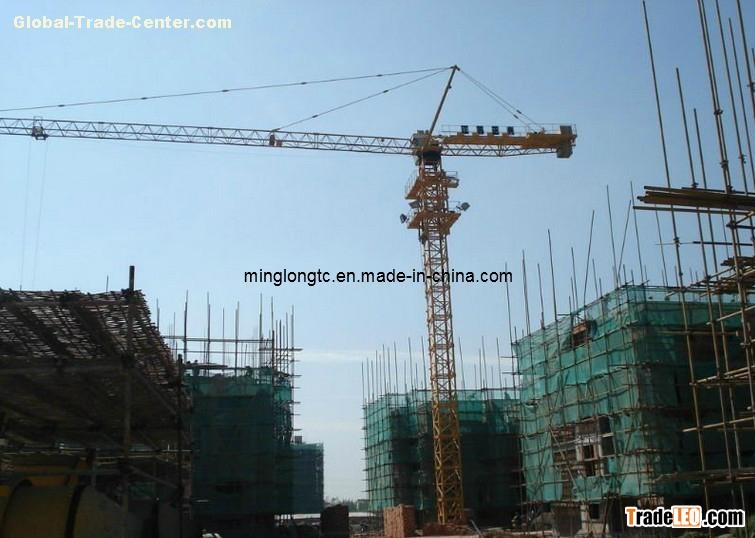

TOPKIT TOWER CRANE TC5515
1. Max. Load: 8t
2. Jib length: 55m
3. Tip load: 1.5t
4. Free standing height: 44m
5. Mast section: 1.6*1.6*3.0m
6. Type: Stationary, inner-climbing, external climbing, travelling tower crane
| Rated Load moment | K N.m | 880 | |||
| MAX hoisting capacity | t | 8 | |||
| Working range | m | 3~60 | |||
| Hoist height | Freestanding | 45 | |||
| Adhered | 151.2 | ||||
| Hoist speed | Double falls | m/min | 80.36/41.05 | ||
| Quadruple falls | 39.37/20.11 | ||||
| Swiveling Speed | r/min | 0.64 | |||
| ranging speed | m/min | 44/22 | |||
| Climbing Speed | 0.4 | ||||
| Min. stable descending speed | ≤7 | ||||
| Self weight | structure weight | Freestanding | t | 42.77 | |
| Adhered | 83.77 | ||||
| balancing weight | 17.8 | ||||
| Total motor capacity | kW | 47.73 | |||
| allowed operating temperature | ºC | -20~+40 | |||
| Power supply parameters | 50Hz | ~380V±10% | |||
