Brand:YFBF

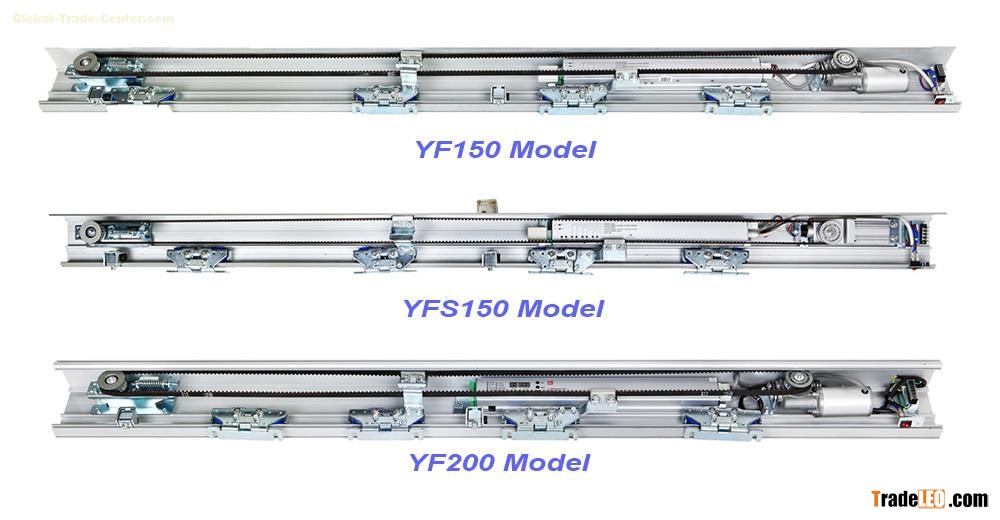

Model:YF150, YFS150, YF200
MOQ:10 Pieces
Commercial Automatic Sliding Door System with 24V Brushless DC Motor
Quick Detail:
Door Type: Sliding
Door style: Single-leaf / Double-leaf
Opening Type: With Remote Control
Motor: DC24V Brushless
Material: aluminum alloy
Special Function: Heavy Duty
Door Weight Bearable: 200kg Single Leaf, 2X150 Kg Double Leaf
Description:
There are several types of sliding doors, these are:
- Standard sliding door (single wing or double wings)
- Telescopic sliding door (two wings or four wings)
- Circular sliding door (segment circular, semi circular or full circular)
- Sliding folding door (two wings or four wings)
- Hermetic sliding door (single wing or double wings)
- All glass sliding door (single wing or double wings)
- Clean room sliding door (single wing or double wings)
Applications:
Commercial Automatic Sliding door Systems are typically used on the outside doors of large retail businesses. (smaller retail businesses prefer swing door operators.) They are also used in elevators (lifts)
| Max door weight (single) | 1*150 kgs |
| Max door weight (double) | 2*140 kgs |
| Door leaf weight | 700-1300mm |
| Opening speed | 150-500mm/s (adjustable) |
| Closing epeed | 100-450mm/s (adjustable) |
| Motor type | 24V 60W/100W Brushless DC motor |
| Opening tiem | 0-9 second (adjustable) |
| Voltage | AC90-250V 50Hz-60Hz |
| Operating Temperature | -20℃ - +70℃ |
