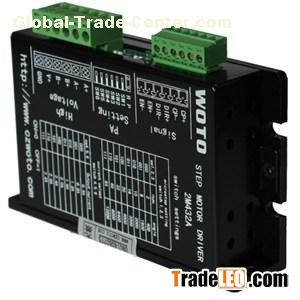

2M432ACharacteristic :1.Using new digital sinusoidal micro-segmentation algorithm 2.Lower heating and noise ,Website:http://www.wotomotors.com, higher stability 3.The phase current can be adjusted by switch DIP.4.For the input control signal, electric circuit use optically coupled isolator to low the noise interference .5.With short circuit, overvoltage, undervoltage, overtemperature protection and improving functionsstepper Motor driver Specification :Input Power supply :12-40VDCOutput Current0.4A～3.2ADrive WayPWM constant current chopping ,two phase Sine wave output currentSuitable stepper motor35,42,57 series two phase stepper motorAmbient environment-10℃～55℃ 15～85%RH、No condensation. Non-corrosive, flammable, explosive, conductive gas, liquid and dustKeeping enviroment－40℃～ 55℃, ＜93%RH,No condensation, no frostSize (L*W*H)115*68*24mmNet Weight0.25 KgCurent seting :SW1-SW3000001010011100101110111Phase current0.4A0.8A1.2A1.6A2.0A2.4A2.8A3.2AMicrostep Subdivision setting : SW1-SW3000001010011100101110111steps/rev28101620324064Describtion :Microstep setting Users can set the driver Microstep by the SW1-SW5 five switches,total 28 micro-step. When you set the microstep , pls stop the driver working.The setting of the specific Microstep subdivision, please refer to the instructions of the driver panel figure .Output current setting Users can set the driver Microstep by the SW1-SW5 five switches. The setting of the specific Microstep subdivision, please refer to the instructions of the driver panel figure..Double pulse setting SW7 sets pulse mode, setting
