Brand:xianfeng
Model:KGL35
MOQ:-0 -

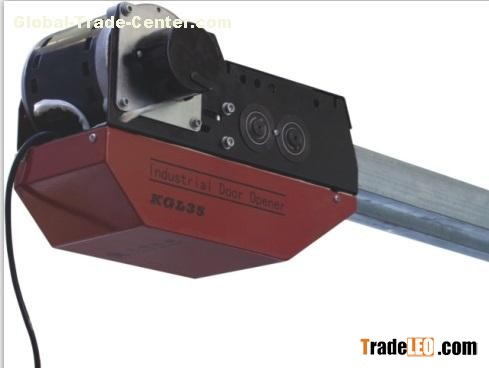

KGL35
Main features
l Contains electromagnet brake.
l The sub-sectional design of the rectangular guide rail, easy to transport and assemble.
l Quiet and stable operation.
l Control board is integrated with the motor.
l Wiring terminals for loop detector, pressure sensor and infrared photocells.
l Compact structure and light weight.
l Auto-close time is adjustable.
l Manual override in case of power failure.
Technical specification
| Mode | KGL35 |
| Power supply | 220×(1±10%)V 50Hz |
| Motor rotate speed | 960 rpm |
| Output rotate speed | 85 rpm |
| Output torque | 35 N.m |
| Motor power | 220 W |
| Max. travel | 5 m |
| Running speed | 200 mm/s |
| Thermal protection | 120 ºC |
| Work duty | S2:20% S3:10min |
| Ambient temperature | -20 ºC ~+45 ºC |
| Rail length | 6m (4m, 5m optional) |
| Dimensions | 344﹡275﹡210 |
| Net weight | 24 kg |
| Door | 25 m² |
