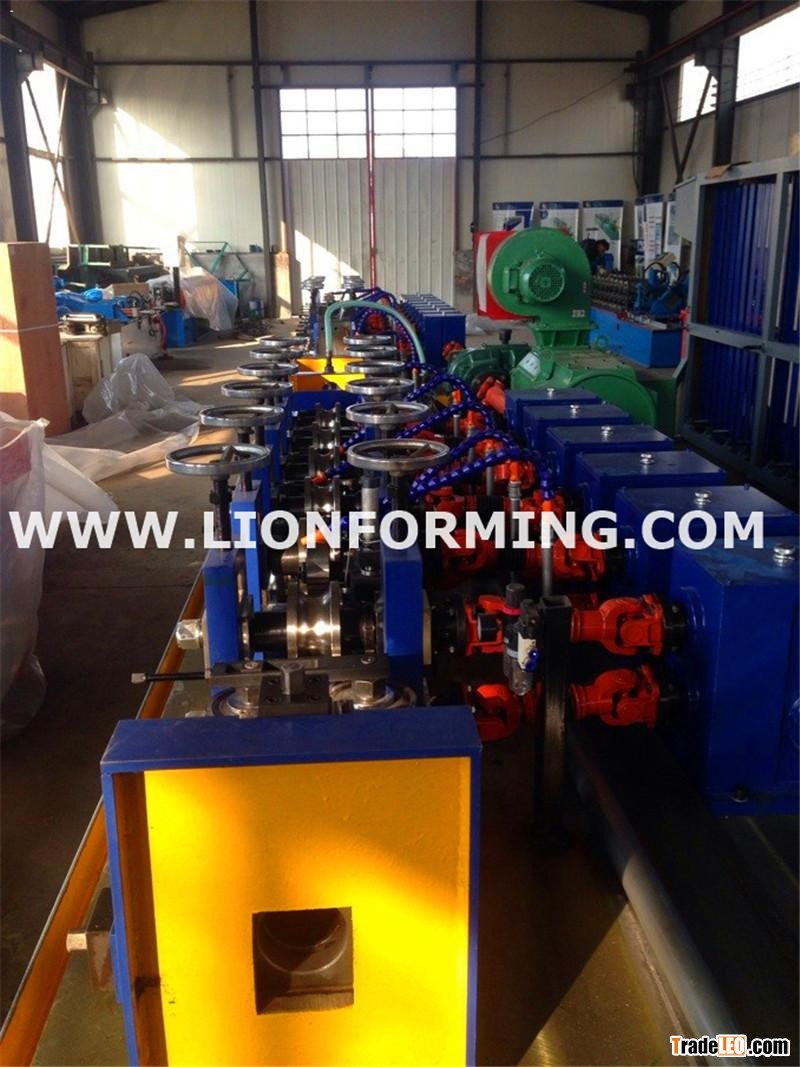

Pipe forming Machine

 1. Specification

This unit is specialized in manufactureing the round/square tube and the other tube.The diameter  welded tubes is φ19—φ76 mm,wall thickness is 0.8~3 mm

2. Applicable materials:
     (1)hot/cold/color coated steel strip
     (3) thickness of Strip Steel: 0.8~3.0 ,
     (4)width of the Strip Steel; 60~240,
     (5)coil inner diameter  φ350~φ450mm
     (6)coil outer diameter  φ800~1200

     (7)coil weight: ≤1000

3. Size range of the machining stell tube
    (1)diameter:φ19--76    (2)thinckness:0.8~3.0(square tube,special tube≤2.5mm

4. Process chart

      Strip steel→decoiling→Cut and butt weling→strips storage→levelling→forming→welding→milling

      raw edge→water cooling→sizing→Bandrichten→cutting→stand

5. Speed:20~70M/min.

6. High frequency power:200KW

7.User configuration:(reference)
    (1)space charge of the unit:45M×4M(L×W)
    (2)space charge of electrical equipmen:5M×3M(L×W)
    (3)High Frequency Power:200KW
    (4)shearing machine,butt welding machine
    (5)tube stand 1 piece
    (6)saw
    (7)bar magnet for welding
    (8)2pcs lift pump for High frequency and welding machine
    (9)Cricuit of the unit.
    (11)one pcs air compressor

We are LION COMPANY from China. we are specialized in

1. light keel machines, like studs, track, angle, T-bar machines,  FOB XINGANG, CHINA

MAIN-T ( GEARS DRIVE ): USD10,500    CROSS_T ( GEARS DRIVE ): USD10,500

 ANGLE ( GEARS DRIVE ): USD7,500       STUD&TRACK ( GEARS DRIVE ): USD14,000

 FURRING ( GEARS DRIVE ): USD10,000  MAIN CHANNEL ( GEARS DRIVE ): USD8,000

ANGLE ( GEARS DRIVE ): USD7,500

2. roofing/wall panel machine, glazed tile machine, deck forming machine,

SINGLE LAYER MACHINE: USD24,500 FOB XINGANG, CHINA

GLAZED TILE MACHINE: USD30,500 FOB XINGANG, CHINA

DECK FORMING MACHINE: USD45,900 FOB XINGANG, CHINA

3. shutter door machine;

USD12,500 FOB XINGANG, CHINA

4. C/Z purlin machines,

C PURLIN MACHINE (1.5-3.0mm; 80-300mm ): USD28,000 FOB XINGANG, CHINA

Z PURLIN MACHINE (1.5-3.0mm; 100-300mm ): USD31,000 FOB XINGANG, CHINA

C/Z EXCHANGABLE MACHINE: USD56,000 FOB XINGANG, CHINA

5. guardrail machines, pipe forming and welding machines etc,

GUARDRAIL MACHINE ( TWO WAVES ): USD61,300 FOB XINGANG, CHINA

GUARDRAIL MACHINE ( THREE WAVES ): USD84,000 FOB XINGANG, CHINA

6. similar machines, also any other drawings requested by customers.
