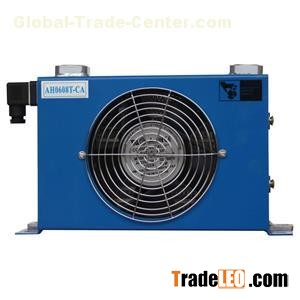

Air Oil Cooler for Hydraulic System AH0608TUsing of Air Cooled oil cooler for hydraulic system is getting more and more frequent than that of water cooled oil cooler.The air oil cooler is characterized by its compact,lightweight,efficient design.To preserve the air oil cooler,when installed on the return line of hydraulic system,a by pass valve should be always mounted in parallel to the cooler in order to avoid peak pressure surges.Technical DataAH Series Air Oil Cooler specification AHThreadFlowMax. PressureExterior cooling areaL x H x W m/mWeightApplicable Motor PowerIPPTL/MinMpa㎡kgKwAH0608T*3/4"502.00.70320*200*11650.75-1.1Kw(1-1.5Hp)IP54Product Features:High performance aluminum cooling elementsAC motor powered fanThe heat is transferred from the medium to be cooled to the ambient airDC motor fan availableApplication Field:Machine tools,Hydraulic SystemEngineering machine,Tunnel and Port MachineryHydraulic power unit,
