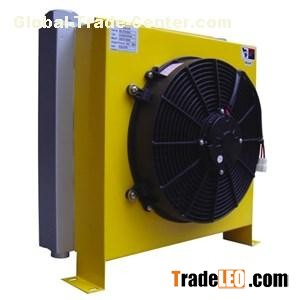

Air Blast Hydraulic Oil Cooler HD1490T1(DC)Overheating in hydraulic systems will damage most seal compouds and accelerate degradation of the oil.To avoid high fluid temperature in hydraulic system,we have to decrease heat load or increase heat dissipation,thus,a heat exchanger is considered.The ability of an Air Hydraulic Oil Cooler is to dissipate heat depended on the flow-rate and temperature of both the hydraulic fluid and the cooling air or water circulating through the exchanger.Technical DataHD Series Air Cooler specification HDThreadFlowMax. PressureExterior cooling areaL x H x W m/mWeightApplicable motor powerIPGL/MinMpa㎡kgKw HD1490T1*1 1/4"1502.09.3506*502*25821.411-15Kw(15-20Hp)IP68Product Features:Compact Oil CoolerHigh Cooling capacityOperating Pressure:25barSuitable for AC220/380VLong service lifeApplication Field:Mixing vehicleConcrete mixer and pump trucksRoad PaverRotary drilling rigConstruction machineryRailway machinery
