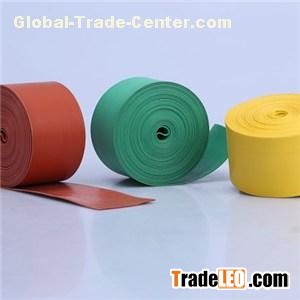

Applications:To provide a simple and effective solution to the problems of retrofit insulation of bus bar particularly with equipment cannot be dismantled. Applicable up to 35kV.Features:It’s a heat-shrinkable,Website:http://www.molypoly.net, adhesive-coated tape which provides insulation enhancement and protection against accidentally short circuit.Easy to apply using readily available equipmentEasily installed over a wide variety of shapes including complex connections.Excellent anti-tracking and UV-resistance propertiesSuitable for both indoor and outdoor useWorking temperature:-55℃ to 105℃Technical properties:PropertyTesting methodTypical dataDielectric strengthIEC 24325kV/mmVolume resistanceIEC 93≥1.0x1013Ω•cmDielectric constantIEC 250≤3.5Water absorptionISO62/23℃,14days≤0.1％Tensile strengthASTM D 2671≥12.0MPaElongation at breakASTM D 2671≥400%Flammability(Oi)ISO 4589≥27Voltage-42kV/1min(Min.space 30mm)no attackThunder impact-75±15kV(Min.space 30mm)no attackRust testing-23±2℃,humidity,95%,24hrs passThermo aging-136℃,168 hrs PassDimensions:0.8mmX50mmX5000mm1.4mmX50mmX5000mmRelated information:The product is supplied as rolls of specified dimensions. Recommend to store in the original packing, protected from moisture, dust, heat and sunlight.
