Brand:FG

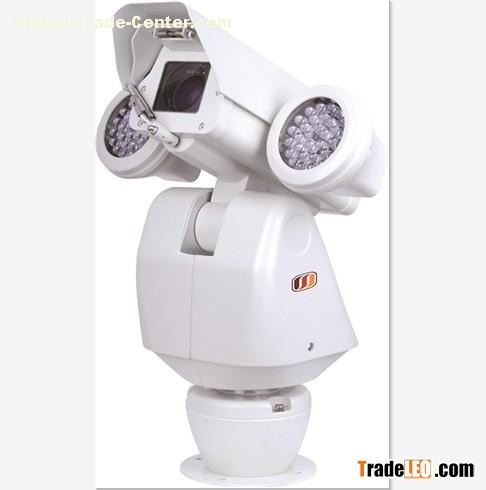

Model:FG-TCR200IP
MOQ:1 Pieces
Send Inquiry
Model FG-TCR200IPCamera characteristicsImage sensor1/ 2.8 inch Exmor Cmos Sensor with 2 Megapixel With progressivescanOptics20X optical, 12X digital zoom, F=4.7mm-94mm, f1.6-3.5,angle 55.4to2.9 degree IR range:100MResolution 1080P/30FPS,1080P/25FPSMin illumination Day 0.5LUX/1/30sec,night 0LUX/1/3secS/N ratio >50dBFocus Auto/manualWhite balance Auto/manualWide dynamic range Auto/manualVideo enhancement AGC, BLC, AE/ALC, WB, MIRROR, DNR etcPrivacy masking Up to 24 mask and max,8 per screenShutter speed 1/1 to 1/10000secGain control Auto/Manual -3dB-26dB,16STEPS Max. gain limit 6dB to 28dB，12STEPSPTZ characteristicsPTZ range Pan 360 degree, 0.4 to 100secPreset position 128 positionAuto tracking Auto, zone limiter and preset (on/off)Sequence tour 4 preset tourScan track 2 scan tourPrivacy masking 12Shock-proof >4GBoot-up action Preset, tour, tracksIP CharacteristicsVideo Stream H.264 Compressionframerate Max. 30fps at 1080p with H.264Bitrate 64Kbit/s to10 Mbit/sNetwork Interface Static IP,DHCP, PoE, DDNS clientProtocolTCP ,UDP ,IP ,HTTP ,DHCP, PPPoE, RTP, RTSP, Tos, DNS,DDnS, SNTP/NTPStreaming TCP, Multicast, RTP over UDP or/and MulticastAccess Web Browser, NVR SoftwareImage Correction Brightness, Saturation, ContrastUser Administration Root level and up to 10 UsersNetwork ProtocolcompatibilityonVIFConnection interfaceNetwork RJ45 10M/100M T-baseAudio I/O 1x RCA input / 1x RCA outputAlarm I/O 4x Alarm In / 2 X Alarm OutOperating Temp -30 to 65C , 95% HumidityWeather Protection aluminium alloy, IP67 ProtectionDimension 250mm*450mm*280mm 6KGPower High PoE Power / 24V AC , max. 55W with heater & Blower
