Brand:JEC
Model:J-IP-8110-LR
MOQ:1 Pieces
Send Inquiry

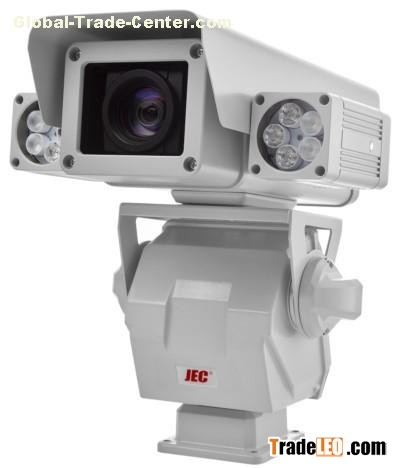

- J-IP-8110 series intelligent variable speed integrated equipment with inner decoder
- Adopts aluminum alloy material, waterproof, heat-resistant and anti-corrosion
- With the driving of high intensity geared motor, it can auto-scan and install inner heater
- Supply voltage: PTZ DC 12V (±10%)
- Exterior power supply: AC 22V transform to DC 12V 4A
- Consumed power: PTZ ≤10W, white light ≤20W
- Scan scale:
- Pan: 0 to 360° continuously
- Tilt: -70 to 20°
- PTZ scan precision: 0.05°
- Turn speed:
- Pan: 0.8 to 35°/s
- Tilt: 0.8 to 20°/s
- Applicable temperature: -20 to 55°C
- Address scale: 1
- Presets: 255
- Presets speed:
- Pan: 20°/s
- Tilt: 20°/s
- Presets precision: ±0.05°
- Baud rate: 9,600bps
- System: PAN/NTSC
- Communication format: RS-485
- Tilt maximum torque: 9Nm (state standard)
- Output voltage: DC 12V (±10%)/3A
- Maximum loading capacity: 5kg (state standard)
- Protection grade: IP66
- Weight:PTZ: 3.5kg, 2.5kg double-lamp housing
