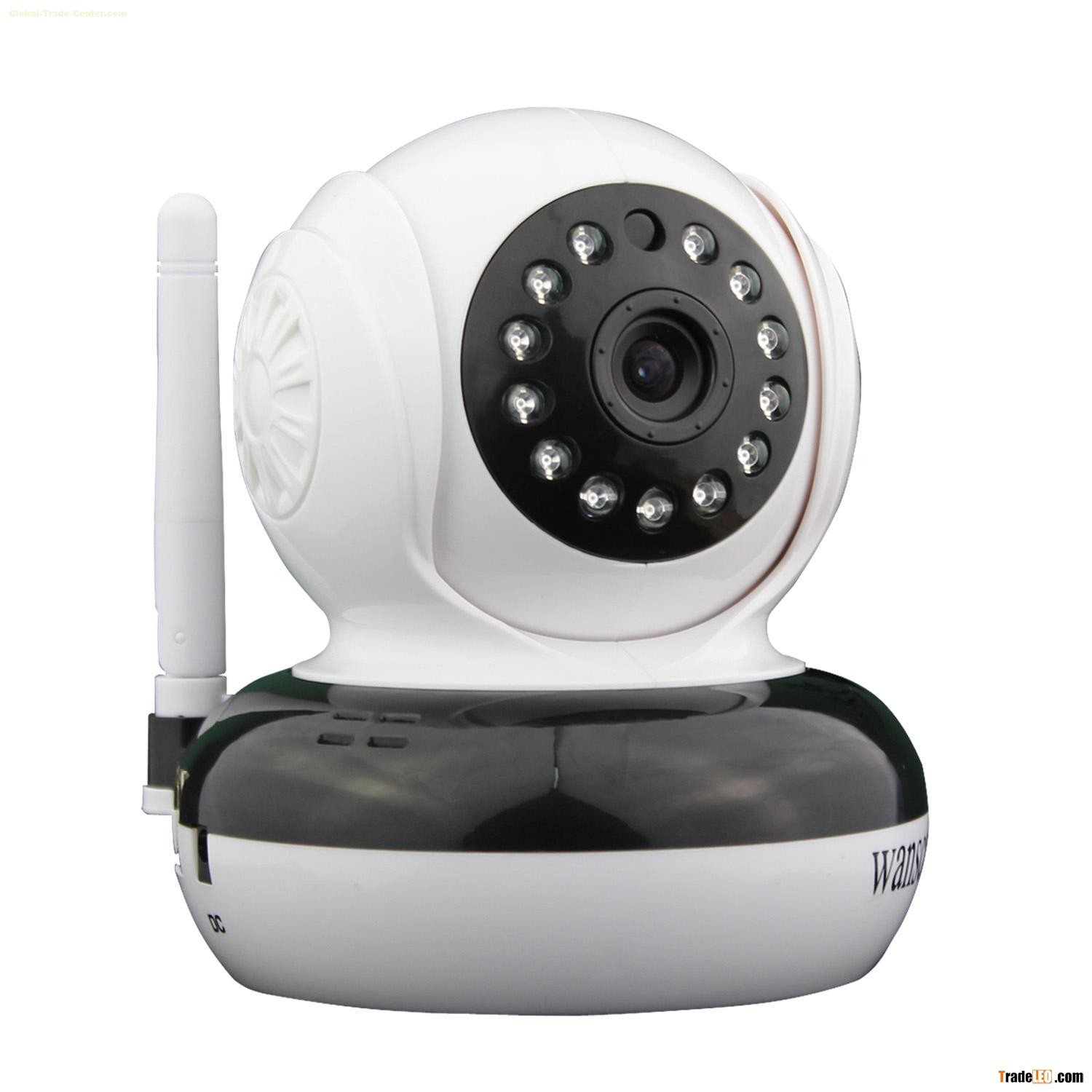

Brand:Wanscam
Model:HW0046
MOQ:1 Pieces
Send Inquiry
| Model No: HW0046 | ||
| Ssystem | System Security | Supports there-level account, password, user authority management. |
| OS | Embedded Linux OS | |
| Processor | Hi3518C | |
| P2P (Free) | No need to preset camera, Offer free P2P(WXH-000xxx-xxxxx), Plug&play, Support QR code scanning to view | |
| Onvif Protocol | Support ONVIF Protocol | |
| Multi-device function | Support 12 language remote surveillance, record, alarm, wifi setting etc. | |
| PC client | Support remote multi-devices monitor, record, alarm etc. | |
| Cell Phone View | Self R&D APP, Support Iphone,Android smart Phone | |
| TF Card Record | Support Max 128G TF card .Support the scheduled record,scheduled snapshot,Support Intelligent record playback via browser | |
| Lens | Lens Type | Lens Standard : 3.6 mm |
| IR-CUT | Build-in IR CUT, no color cast,auto switch when IR on | |
| Video | Image Compression | H.264 Main profile and baseline profile can be set |
| Sensor | 1/3 Progressive Scan 1.3MP CMOS | |
| Video Parameters | Brightness, Contrast,Saturation,Exposure,sharpness,VerticalAnd Horizontal Flip up and down, left and right mirrors can be adjusted | |
| Image frame Rate | 25fps(50HZ), 25fps(60HZ) | |
| First Stream | 720P-(1280x960),（1280*720） | |
| Second Stream | VGA-(640x352),(320x176) | |
| Audio | Compression format | G.726/G.711（G.711 Default） |
| Audio In | Built in Mic,also external MIC / pickup supported | |
| Audio Out | Built in Speaker,also external headphones or efficacy supported | |
| Night Vision | Night Visibility | 13 Φ5 IR LEDs, Night visibility up to 10 meters |
| Lux | 0.01Lux @(F1.2,AGC ON) ,0 Lux with IR | |
| Pan/Tilt | Preset | Support 8 Preset Positions |
| Rotation Angle | Pan:270°, Tilt: 90° | |
| Rotation Speed | Pan: Speed Range 5-30°/ S; Tilt: Speed Range 5-50°/ S; | |
| Alarm | Motion Detect | Support 4 Independent detection areas(Sensitivity can be adjustd 1-100） |
| Alarm Action | Support Email Photo alert,Snapshot and Record uploaded to FTP or TF Card | |
| Network | Ethernet Interface | One 10/100Mbps RJ-45 |
| Supported Protocol | TCP/IP，HTTP，TCP，ICMP，UDP，ARP, IGMP，SMTP，FTP，DHCP，DNS，DDNS，NTP，UPNP，RTSP etc. | |
| Access Protocol | Supports ONVIF 2.1 protocol and supports permission check (off by default permissions check) | |
| Online Visitor | Support Max 6 visitors at the same time (First Stream:3 visitors;Second Stream:3 visitors） | |
| IP Mode | Dynamic IP address, static IP address（DHCP） | |
| Supported OS | Support Microsoft Win98 SE/ME/2000/XP、Vista、Win7 | |
| Browser | Support Internet Explorer 6.0，7.0， 8.0 9.0, FireFox，Google Browser etc | |
| AP Function | Support AP connect WIFI | |
| Wireless Standard | WIFI, 802.11b/g/n | |
| Others | OSD | Support the OSD name, date and time info superposition（Open/Off） |
| Product Type | Plastic, Indoor use | |
| Color | White+Black | |
| Power | DC5V 2A | |
| Working Temperature | -10~50 °C | |
| Working Humidity | 95% RH | |
| Size | Item: 112 x 98mm (HxW); Packaging: 182x110x149mm (LxWxH) | |
| Weight | N.W.: 290g G.W.: 600g(Note:Actual Weight Final) | |
| Accessories | Adaptor, CD(User manual),Screws | |
| Certification | CE,FCC,RoHS | |
| Warranty | Limited 2-Year Warranty |
