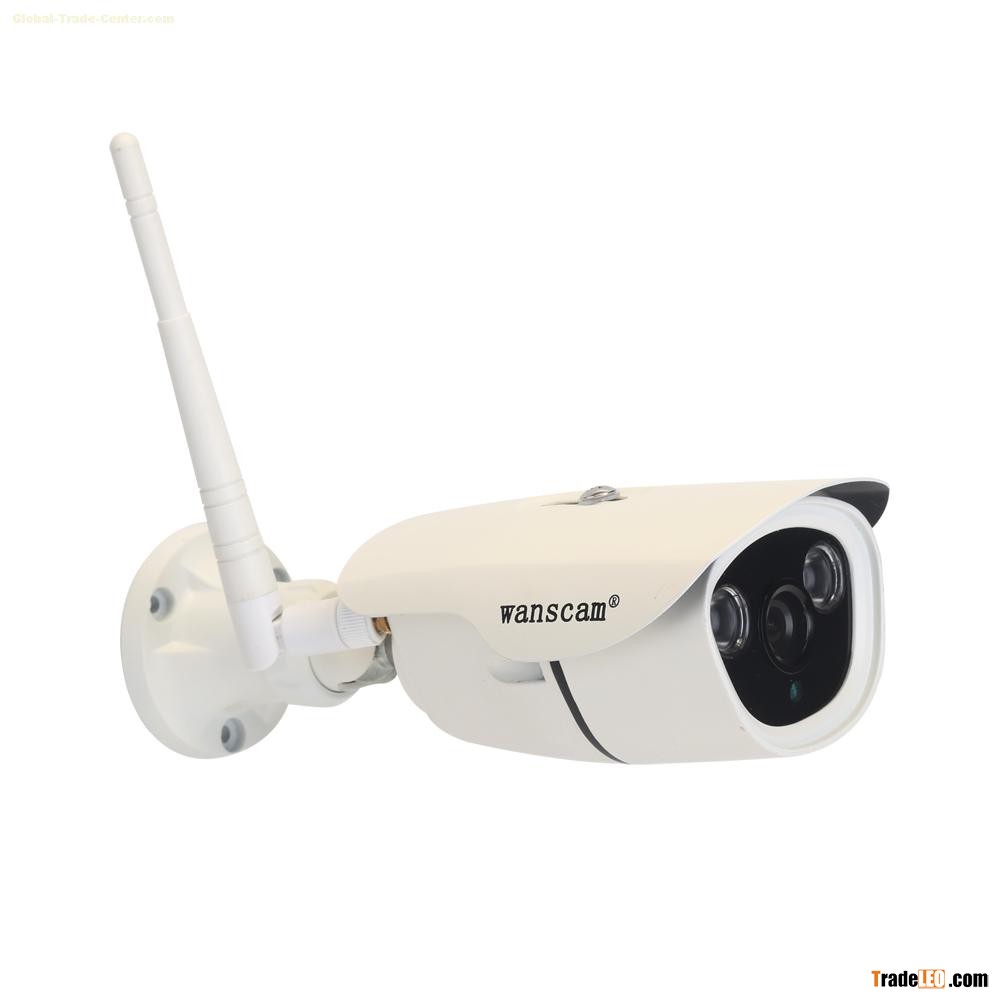

Brand:Wanscam
Model:HW0042
MOQ:1 Pieces
Send Inquiry
| Model No: HW0042 | ||
| Ssystem | System Security | Supports there-level account, password, user authority management. |
| OS | Embedded Linux OS | |
| Processor | Hi3518E | |
| P2P (Free) | No need to preset camera, Offer free P2P(HWAA-000xxx-xxxxx), Plug&play, Support QR code scanning to view | |
| Onvif Protocol | Support ONVIF Protocol | |
| Multi-device function | Support 12 language remote surveillance, record, alarm, wifi setting etc. | |
| PC client | Support remote multi-devices monitor, record, alarm etc. | |
| Cell Phone View | Self R&D APP, Support Iphone,Android smart Phone | |
| TF Card Record | Build-in 16GB TF Card, max 128GB | |
| Lens | Lens Type | Lens Standard : 3.6 mm |
| IR-CUT | Build-in IR CUT, no color cast,auto switch when IR on | |
| Video | Image Compression | H.264/MJPEG |
| Sensor | 1/3" Progressive Scan 1.3MP CMOS | |
| Video Parameters | Brightness, Contrast,Saturation,Exposure,sharpness can be adjusted | |
| Image frame Rate | 50Hz: 25fps (1280 × 960),25fps (1280 × 720) | |
| First Stream | 960P（1280x960），720P（1280x720） | |
| Second Stream | VGA-(640x352),(320x176) | |
| Audio | Compression format | None |
| Audio In | None | |
| Audio Out | None | |
| Night Vision | Night Visibility | 2 array Led lights,night vision is up to 30m |
| Lux | IR ON 0 LUX | |
| Pan/Tilt | Preset | None |
| Rotation Angle | None | |
| Rotation Speed | None | |
| Alarm | Motion Detect | Support 4 Independent detection areas(Sensitivity can be adjustd 1-100） |
| Alarm Action | Support Email Photo alert,Snapshot and Record uploaded to FTP | |
| Network | Ethernet Interface | One 10/100Mbps RJ-45 |
| Supported Protocol | TCP/IP，HTTP，TCP，ICMP，UDP，ARP, IGMP，SMTP，FTP，DHCP，DNS，DDNS，NTP，UPNP，RTSP etc. | |
| Access Protocol | Onvif protocol | |
| Online Visitor | Support Max 6 visitors at the same time (First Stream:3 visitors;Second Stream:3 visitors） | |
| IP Mode | Dynamic IP address, static IP address（DHCP） | |
| Online Visitor | Support Microsoft Win XP/Win7/Win8/ Mac OS. | |
| Browser | Support Internet Explorer 8.0-11.0, FireFox，Google Browser | |
| AP Function | Support AP connect WIFI | |
| Wireless Standard | WIFI, 802.11b/g/n | |
| Others | OSD | Support the OSD name, date and time info superposition（Open/Off） |
| Product Type | Bullet ip camera/ Outdoor Use | |
| Color | White | |
| Power | DC12V/2A | |
| Working Temperature | -10~50 °C | |
| Working Humidity | 95% RH | |
| Size | Item: 197*83*62mm (HxW); Packaging: 20x12x18cm (LxWxH) | |
| Weight | N.W.: 450G G.W.:760G (Note:Actual Weight Final) | |
| Accessories | Adaptor, CD(User manual),Screws*3,Paper specifications,1m Ethernet Cable*1 | |
| Certification | CE,FCC,RoHS | |
| Warranty | Limited 2-Year Warranty |
