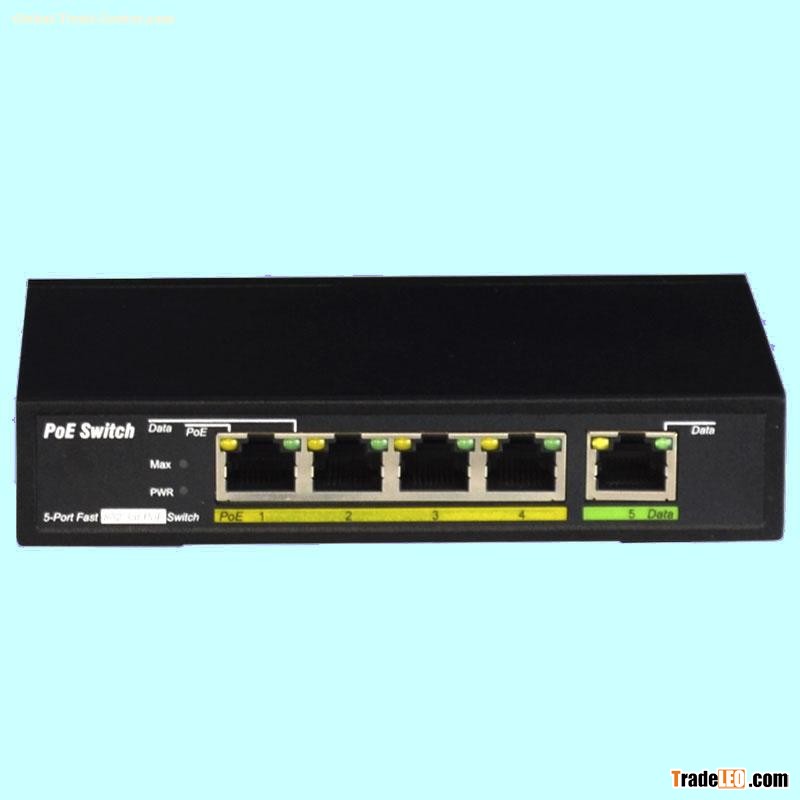

TS0504F 4-Port 10/100Mbps + 1-Port 10/100Mbps data uplink 802.3at PoE switch with 4 port PoE(Port1~4), The PoE ports can automatically detect and supply power to IEEE802.3af/at compliant Powered Devices (PD). The electrical power and data transmission on the same cable can expand your network to the places where no power lines or outlets, where you can install devices such as APs, IP cameras, or IP phones etc.

TS0504F is easy to install and don’t need to configuration. With outstanding performance and quality, the desktop PoE switch is an ideal choice for expanding your home or office network.

Features

Interface information

4-Port 10/100Mbps Fast Ethernet

1-Port 10/100Mbps data uplink port

4-Port PoE port(Port1~4)

PoE(Power over Ethernet）

Complies with IEEE802.3af/at Power over Ethernet

Supports PoE Power up to 32W for each PoE port

Auto detect power device

PoE Overload Alarm LED

Remote power and Data feeding up to 100m

Switch

Flow Control for Full Duplex operation and back pressure for Half Duplex Operation

2K MAC address, automatic address learning and address aging

Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az)

Key Features and Benefits

PoE Features

The TS0504F can provide up to 32 Watts of power to attached devices, such as VoIP phones, wireless access points; surveillance cameras etc, all over existing cat. 5 cables. The switch eliminates the need for individual power sources for devices in the network, saving on costs for power cables and avoiding power outlet availability issues.

PoE Power Usage Display

The TS0504F helps users to monitor current status of PoE power usage easily and efficiently by its intelligent PoE Management feature of LED indication, there are one orange LEDs named “max” located on left side of the front panel. When Port 1-4 output is >= 80%, the LED will be lighted up, when Port 1-4 output is> = 100%; the LED will blink to notify customers for better PoE allocation. If PoE Power consumption over 100%, the system will cut off the power of the lowest-priority port. Priority (port 1 > port 2 >port 3 > port 4).

Application

TS0504F is an ideal solution for IEEE 802.3af and High Power IEEE 802.3at Power over Ethernet (PoE) application. it is designed specifically to satisfy the growing demand of higher power consuming network PD (powered devices) such as PTZ (Pan, Tilt & Zoom) /Speed Dome network cameras, multi-channel (802.11a/b/g/n) wireless LAN access points and other network devices by providing double PoE power than conventional 802.3af PoE currently.
