Brand:CMOLO
Model:CPW-322AG
MOQ:1 Pieces

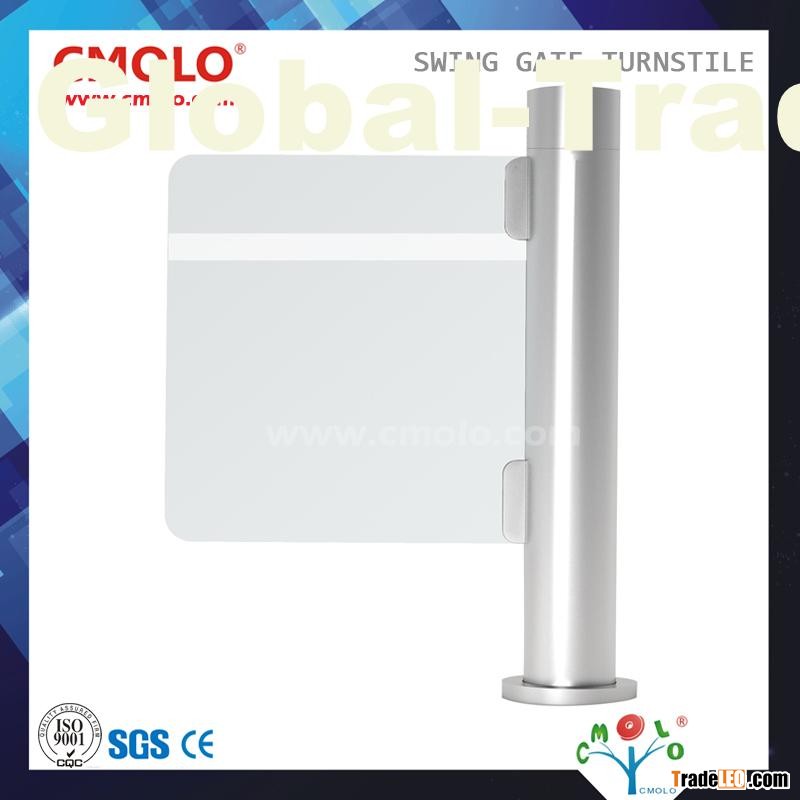

Swing Gate Turnstile (CPW-322AG) developed by CMOLO has the widest passage which available for handicaped only, or users with luggage or package and bicycles.
Size: 868*168*1100mm
framework Specifications:
framework: 304 (Standard) / 316 grade stainless steel
Thickness of Ply: 1.5mm (Standard) / 2.0mm
Finishing: Brushed surface (Standard) / Polishing surface
Material of Obstacle: Stainless steel (Default) / Organic glass (Optional) / Tempered glass (Optional)
Lane width: 700 mm (default)
Design Sketch of Swing Gate CPW-321ASP
Customized Features:
Alternative Materials, Finishes and Custom Design
Access Control System Integration
Ticket System Integration
Camera System Integration
Thermostat System Integration
Remote-Controlled Button
Usage Counters
Waterproof and Dustproof Design: IP55 for mechanical module, IP65 for electric module
Applications:
Office building
Government
Colleage and University
Elegant Hotel
Super market
| Technical Parameters | |||
| power and voltage | AC 220V / AC 85 ~ 230V | operation voltage | DC 24V |
| machinery mechanism | MTHT™ Lossless mechanism | driving motor | DC brushless motor |
| communication interface | RS485 / RS232 | rated power | 90W |
| passing speed | 30 ~ 45 people / min | working environment | Indoors |
| operation temperature | - 15 ~ 60Centigrade | humidity temperature | 0 ~ 95% (non-condensation) |
| control input/output | 6 channels relay control output/ 4-channel dry contact signal input | ||
