Brand:xinfeng
Model:HZS25
MOQ:-0 -
Send Inquiry

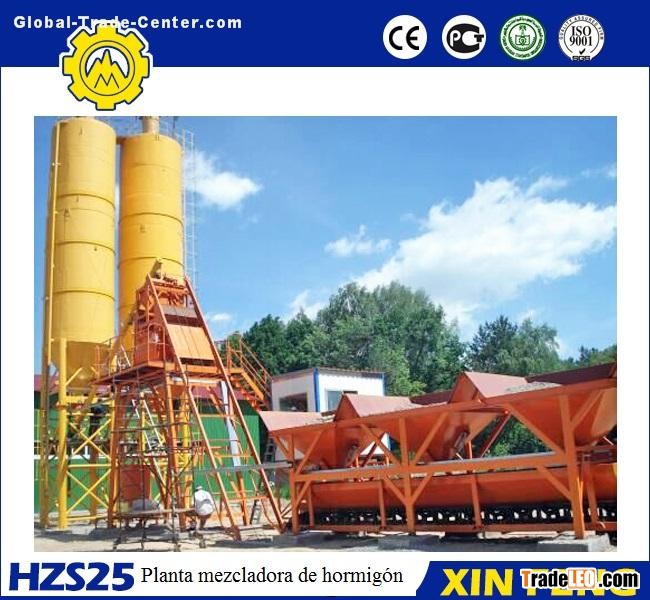

The HZS series concrete mixing plant, which can produce plastic concrete and dry concrete efficiently, is ideal equipment to produce commercial concrete. The plant adopts the JS series concrete mixer which has lots of advantages, such as
1. Twin-shaft concrete mixer with high efficiency
2. Independent and accurate weighing system
3. Excellent performance of environmental protection
4. Reliable and efficient working performance
Concrete mixing plant as my company's quality products, using the latest technology, Welcomed by customers.
Detail: http://www.zzxfjxwm.com
E-mail: xinfengwm@gmail.com
Telephone：+86 0371 88810295
| Model | HZS25 | |
| Global parameter (m3/h) | Maximum productivity | 25 |
| Discharging height(m) | 1.5–3.8 | |
| Working cycle time(s) | 72 | |
| Outline dimension(mm) | 11693×13060×17245 | |
| Total power (kw) | 50 | |
| Mixer | Model | JS500 |
| Batcher | Model | PLD800 |
| Pneumatic system | Air compressor | 1.0–7 |
| Discharge pressure(MPa) | 0.8 | |
| Displacement(m3/min) | 1.67 | |
| Motor power | 5.5 | |
| Measurement system | Aggregate weighing accuracy | ±2% |
| Cement weighing accuracy | ±1% | |
| Water weighing accuracy | ±1% | |
| Additive weighing accuracy | ±1% | |
| Total weight | 16T | |
