XGM-16(Chassis riveting machine)

Characteristics:

A.Hanging and movable style

B.Max.process ability Φ16mm(cold)Φ25mm(hot)

C.Manual and automatic switching

D.Auto loop boosting cylinder

E.One hydraulic station can reserve two sets of connect mouth, can match 2-sets of C-gun.

F.Hydraulic power pack connect with variety of C-gun available

G.Any direction operation

H.Short-circuit protector

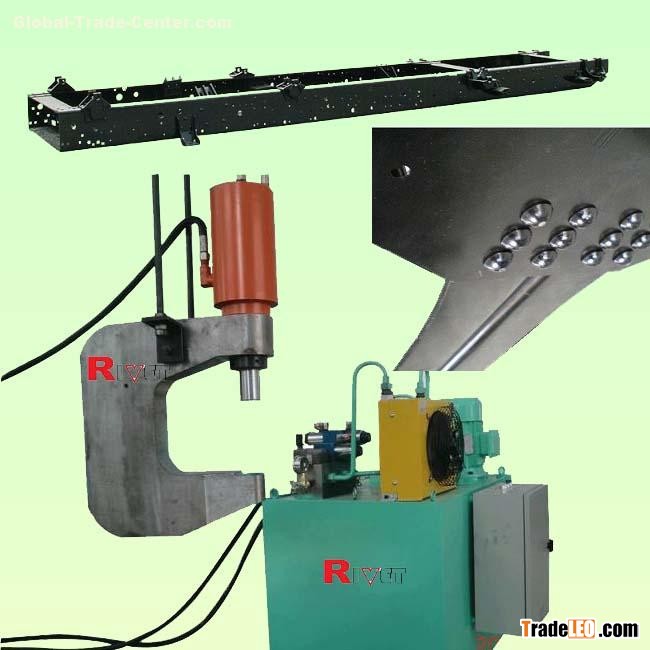

In some areas, the common riveting machine can not processing due to the span of workpiece and heavy with large body, at this time you might considering the traveling riveting machine (hydraulic power pack with C-gun, also called it as hanging machine). This machine pressure is powerful and stable during process, after process that the surface are smooth and beautiful.The machine's pressure, speed, system pressure are adjustable to insure the achieve a perfect result.

Specification of model:XGM-16

1.Max.pressure                                             500Kn

2.Oil punp output                                           6.3MPa

3.Frequency of process                              14-25 Times/Min

4.Max.process diameter                             16mm cold,  25mm  hot

5.Rated flux                                                   40L/Min

6.Poston stroke                                            95mm

7.Cylinder diameter                                      140mm

8.Power                                                         4Kw

9. "C"-gun size                                              Select from drawings according to requirement

10.Oil-tank volume                                         350 L

11.Hose                                                           8M/10M as optional

12.Weight                                                        1000Kg
