1. Profile:

1.1 Material Thickness:  0.4-0.6MM
1.2 Material Type:      Galvanized steel
1.2 Specification:

2. Process

   De coiling—roll forming---hydraulic cutting---product

   Producing Process Sketch

3. 1.5T Manual de-coiler

3.1 coil inner diameter           φ450mm-φ530mm
3.2 coil outer diameter              φ1300mm
3.3 material width available     20mm-300mm
3.4 max carrying capacity         1500kg

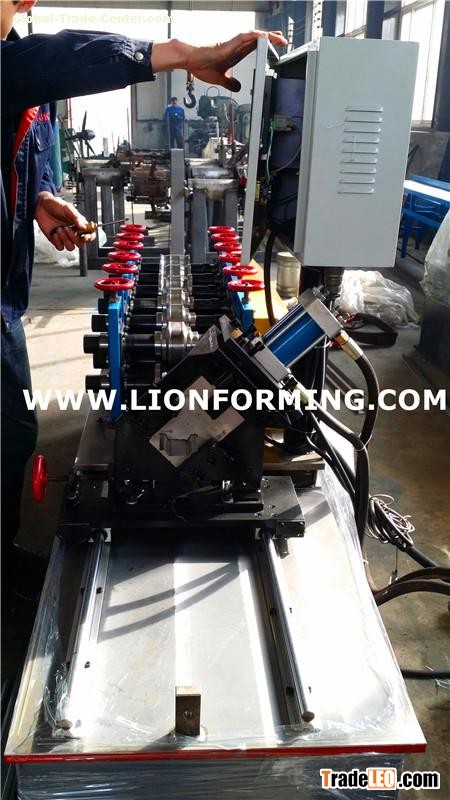

4.Roll Forming Machine

4.1 Shaft diameter       40mm
4.2 Roller Material:          Cr12
4.3 Stations:                     8 stations
4.4 Transmission:             gear wheel
4.5Forming speed:          25m/min
4.6Motor:                         3kw
4.7 Structure:                independent stand

5.Hydraulic cutting

5.1 Material of blade or mold:   Cr12 steel
5.2 Power :3 kw
5.3 flying cut

6.Control system
Delta PLC, touch screen, full automatic

7. Product table
7.1One set of product table:3m
