Brand:mars
Model:4040
MOQ:1 Pieces

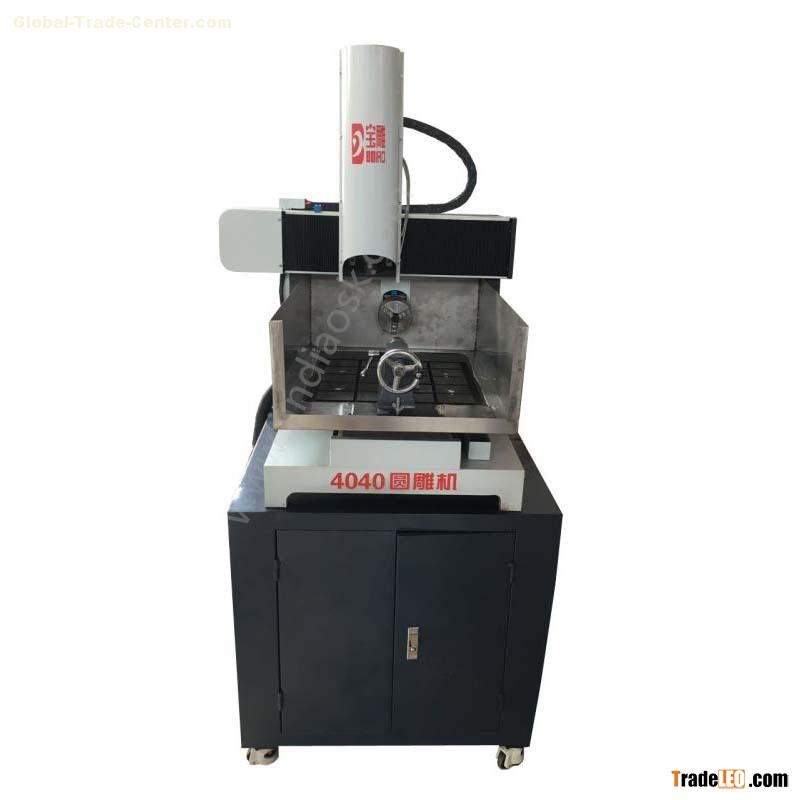

4040 Mini 3D Stone Carving Machine
Performance Features:
1. imported precision ball screw, high precision dividing head, big diameter clamping, can be adapted to different sizes of cylindrical material.
2. National patent box-type column.
3. High-precision drive systems.
4. With power off memory function, power outages continued carving and other user-friendly features to ensure the processing in good order.
5. Advanced CNC system, simple in operation and maintenance easily. Optional CNC dividing heads, carving in the back surface, all user-friendly design can meet the diverse needs of customers.
6. Good compatibility. It is compatible with any advanced CAD/CAM software, such as Type3/ ArtCAM/ CAXA/ UG / pro-e/ Mastercam/ JD/ Wentai, etc..
Technical Parameters:
| Model | ZS-Models |
| Processing Length | Varies from different model |
| Chuck Spec. | ≤130mm |
| Max Motion Speed | 15m/min |
| Max Working Speed | 10m/min |
| Spindle Power | 800W~2.2K frequency water-cooling Spindle |
| Spindle Rotational Speed | 6000 ~ 24000 rpm/min |
| Working Voltage | AC220V/50Hz |
| Engraving Tool | ￠3.175/4/6mm |
| Dictate Format | G-Code / HPGL |
| Positioning Accuracy | ±0.03mm |
| Repeatability | ±0.02mm |
| Controller | NC Studio |
Applicable Scope:
Widely used for jade carving, stone decoration industry, stone processing industry equipment, musical instruments manufacturing, mold making, stone figure statue, building models, advertising, stone crafts, and so on.
