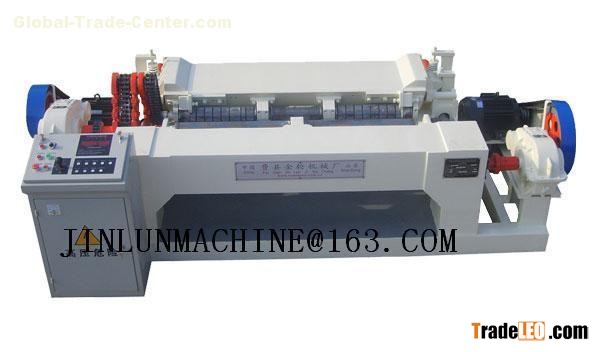

CNC WWXQ130SB VENEER LATHE

   The third-generation CNC spindleless rotary cutter has following features: 1. digital closed-loop control system 2. pressure self-adaptive structure of compression roller (patent) 3. split-type roller bearing base 4. guide rail, screw, screw nut and gear are closely oil-immersed 5. head feed drive shaft 6. single roller and double rollers are driven by a same motor and three outstanding advantages 1. high precision of processing veneer 2. easy to operate and maintain 3. energy saving

Technical Parameter

 Max. Cutting Diameter: value="350" tcsc="0" unitname="mm" w:st="on">350mm Min. Residual Diameter: value="30" tcsc="0" unitname="mm" w:st="on">30mm

Max. Cutting Length: value="1300" tcsc="0" unitname="mm" w:st="on">1300mm

Total Installed Capacity: 13kw (main motor 7.5kw, feed motor 5.5kw)

Cutting Thickness: 0.3value="3.6" tcsc="0" unitname="mm" w:st="on">-3.6mm

Veneering Speed: value="28" tcsc="0" unitname="m" w:st="on">28 m/min.

Dimensions (L*W*H): 3200*1300*value="1000" tcsc="0" unitname="mm" w:st="on">1000mm

Total Weight: value="2500" tcsc="0" unitname="kg" w:st="on">2500kg
