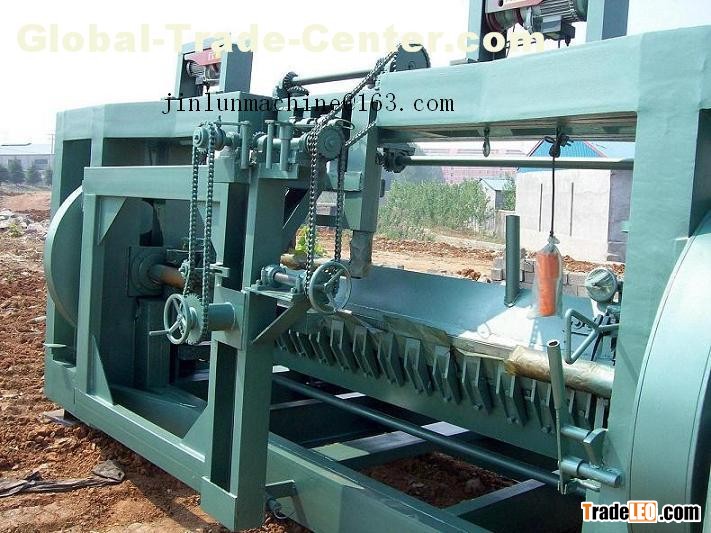

MODEL: LXQ260

FIXTURE: WITH

MOTOR POWER:  MAIN MOTOR: 22KW SPEED AJUSTABLE MOTOR

CLAMPING MOTOR: 4KW-4

FAST FORWARD REWIND MOTOR: 2.2KW-6

SPINDLE ROTARY SEPPED: 1.5-89R/MIN

PROCESS SIZE (LENGTH X DIAMETER):value="2600" tcsc="0" unitname="mm" w:st="on">2600MM X value="1300" tcsc="0" unitname="mm" w:st="on">1300MM

MINIMUM DIAMETER OF THE LEAVING SHAFT: value="110" tcsc="0" unitname="mm" w:st="on">110MM

MAXIMUM KNIFE STROKE: value="700" tcsc="0" unitname="mm" w:st="on">700MM

VENEER THICKNESS RANGE:value=".3" tcsc="0" unitname="mm" w:st="on">0.3MMvalue="3" tcsc="0" unitname="mm" w:st="on">-3MM

PEELING KNIFE SPECIFICATION: 2700 X 140 X value="12.7" tcsc="0" unitname="mm" w:st="on">12.7MM

MACHINERY SIZE: 6350 X 2800 X value="2280" tcsc="0" unitname="mm" w:st="on">2280MM

WEIGHT: 6000KGS
