Product Description:

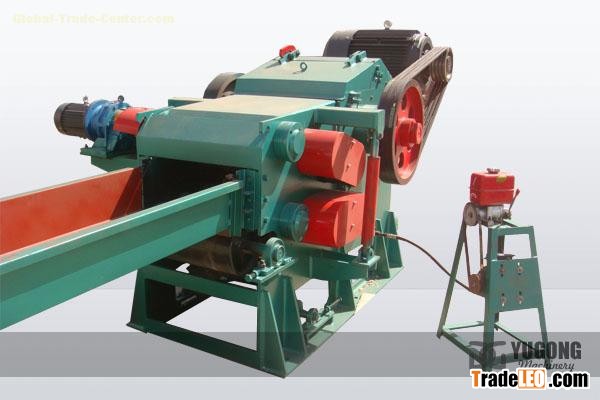

Drum wood chipper is mainly used for cutting branches, small trees, paper plates, planks with diameter or thickness below 120mm. The cut wood chips is used as pellets making raw material. The cutting part is a rotating drum with a number of cutting knives which can process wood into wood chips.
Technical Parameters:
| BX216-3 | BX218-6 | |
| Feeding Conveyor (length, m) | 6 | 8 |
| Discharging Conveyor (length, m) | 13.6 | 13.6 |
| Inlet Dimension (mm) | 230*500 | 300*680 |
| Blades Qty (pcs) | 3 | 6 |
| Knife Roll Speed (rpm) | 590 | 650 |
| Max. Chipping Diameter (mm) | 230 | 300 |
| Size of Finish Chips (length*width*thickness, mm) | 20*20*5 | 20*20*5 |
| Capacity (t/h) | 1.5-3 | 3-6 |
| Main Motor Power (kw) | 55 | 110 max |
| Feeding Motor Power (kw) | 3 - 4 | 4 - 5 |
| Oil Pump Motor Power (kw) | 1.5*1 | 1.5*1 |
| Machine weight (kg) | 4070 | 7000 |
| External Dimension (mm) | 1800*1900*1210 | 2200*2150*1500 |
| Conveyor motor power (kw) | 3 | 3 |
