Brand:China Coal
Model:Economic-type CNC Wood Process Center
MOQ:1 Short Ton
CNC Wood process center , Engraving machine

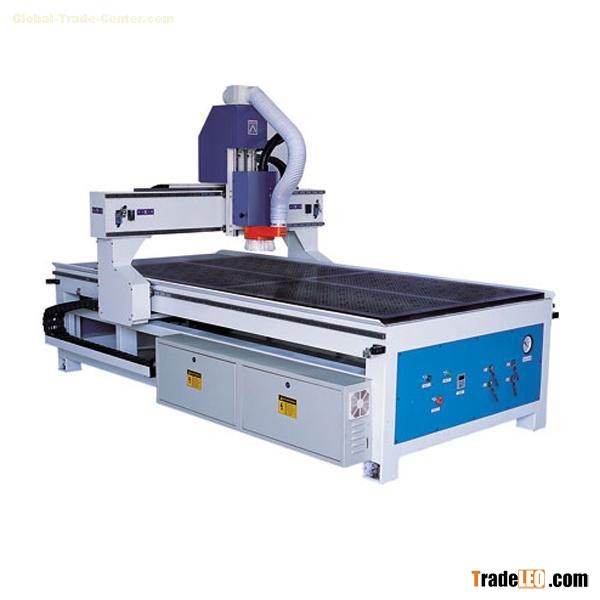

Economic-type CNC Wood Process Center
Standard features
Italy well-known air cooling spindle,high precision ,long life tine,steady working, easy to start up.
Thicken square pipe structure,well welded,no distortion for whole structure.
Adopt inpoted square orbit,double slippers ,blaring heavy,working steadily, high precision,and long life time.
Dsp controller system with USB interface.working without connecting with computer during working and easy to control
Software:
CAD/DAM designing software eg type3 /ArtCAM/ Castmate/ Wentai etc.
Vacuum table with 6 vacuum zones ,which can adsorb different sizes materials.
Options for vacuum pump:
Vacuum pump made in china No-oil vacuum pump made in Germany. Auto Oiling system. Easy tolperate by pressing one key.
Adopt high speed stepper motor and drives,and two motors for Y axis .Max speed is 50M/MN.Auto Aigning System.
Technical Specifications
| X,Y working area | 1300×2500mm |
| Z working area | 200mm |
| Table size | 1680×3100mm |
| Work-holding | by suction |
| control system | dsp/mach3 |
| interface | USB2.0 |
| Command | G code*.u00*.mng*.plt |
| control system | DSP/MACH3 |
| Power(not include the spindle) | 1840W |
| Power | AC380V/50Hz |
| Main axle power rate | 4.5/6KW |
| Main axle rotating speed | 0-24000rpm/min |
| Word Mode | Stepper |
