Brand:China Coal
Model:ZM-1325A Wood CNC Router
MOQ:1 Short Ton
Send Inquiry
Woodworking engraving machine , Engraving machine

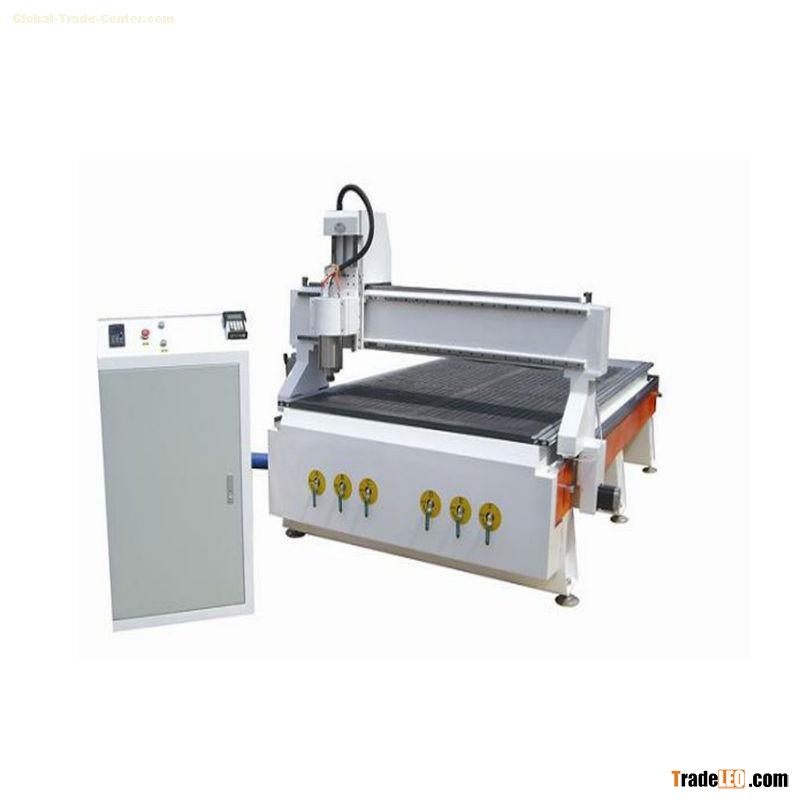

ZM-1325A Wood CNC Router
Features
1. Gantry movement,more stability
2. Taiwan linear square orbit
3. Double motor drive for Y axis
4. DSP with USB interface
5. 5.5KW Vacuum pump,by suction
6. Keep 9 breakpoint
7. Auto oiling system
Option :
Machine size
Italy HSD spindle
Servo motor
Multi head
Aluminum working table
Multi spindle
Movable table and rotary
Technical Parameter
| Model | ZM-1325A |
| Working area | 1300x2500x200 mm |
| Precision | 0.05 mm |
| Max speed | 30 m/min |
| Working speed | 25 m/min |
| Spindle | 4.5 KW , 0-24000 rpm |
