Brand:-
Model:JL-6090
MOQ:-0 -

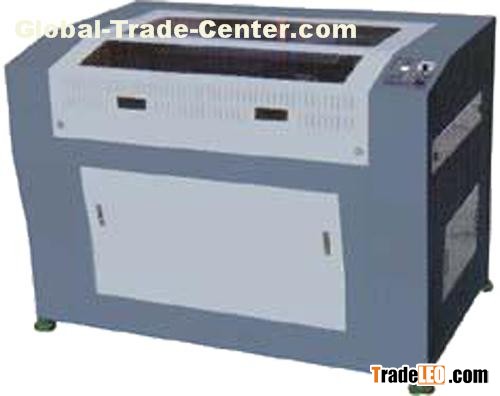

Jinka-laser engraving machine
1.Technical Parameter:
| Model | JL-1280 | JL-6090 |
| Processing area | 1200*800mm | 900*600mm |
| Laser power | 80w 100w(optional) | 60w 80w(optional) |
| Laser type | Co2 laser tube | |
| Engraving speed | 0-60.000mm/min | |
| Resetting positioning accuracy | ±0.01mm | |
| Power supply | AC110-220V ±10%,50-60Hz | |
| Operating temperature | 0-45℃ | |
| Operating humidity | 5-95% | |
| Min.shaping character | English 1mm*1mm | |
| Graphic format supported | BMP HPGL JPEG PLT DST DXP DXF DWG,and CDR,Al | |
| Software supported | Artcut,Coreldraw,photoshop,AutoCAD | |
| Driving system | stepper | |
| Cooling mode | Water-cooling and protection system | |
| Equipment Dimensions | 172*121*107cm | 136*101*107mm |
| Net weight: | 280kg | 200kg |
| Optional spare parts | Up-down clump,rotary system,honeycomb table,metal laser tube | |
| Recommended spare parts | Laser Tube and Lens
| |
2.character features
◆Characteristic design,the maximum cutting speed can be up to 2000mm/s.
◆Configured higher power laser tube,can easily cut acrylic of 20mm thickness in one time.
◆Advanced controlling system,rich functions,can effect engraving on plane,
gradient engraving by 360 degree,cutting and drilling holes,etc.
◆Transmit files directly in CorelDraw,AutoCAD etc.
◆Adopt international laser lens,ensure the perfect cutting effect.
3,Application field
Applicable materials:wood,bamboo,organic glass,crystal,plastic,garments,paper,leather,rubber,
ceramic,Glass and other nonmetal meterials.
Applicable industries:advertisement,gift,shoes,toys,computers,garments,model cutting,building,
Packaging,paper industry.
