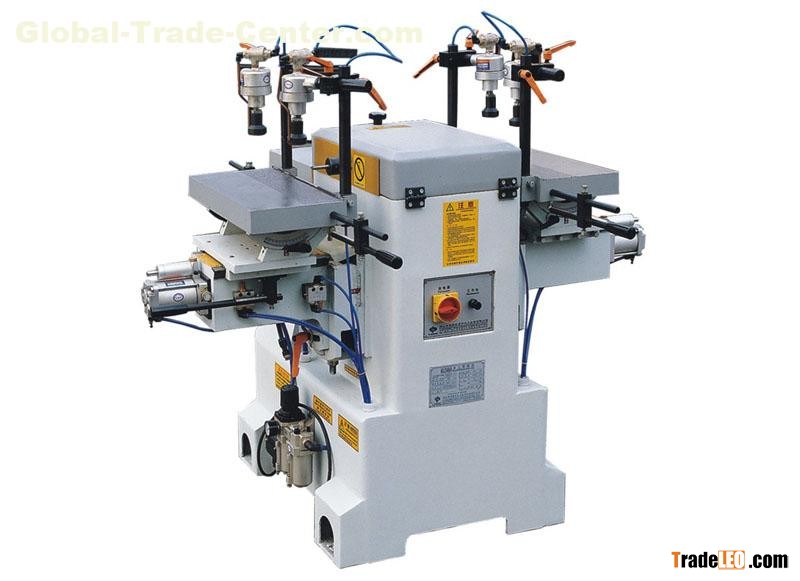

The machine is compact and novel in structure. With a lever kinematic pair, the spindle driving mechanism features low reversing impact, outstanding straightness accuracy and reliable operation.

Main spindle speed:9800r/min
Maximum rabbet width:100mm
Maximum rabbet depth:60mm
Table tilting angle:20°
Diameter of the blade shaft:Φ10x12.7mm
Tableverical strke:80mm
Installation power:1.5kw
Weight:500kg
Overall dimension:900×1500×1250mm
