Brand:LIHENG
Model:HBJQ-8
MOQ:1 Sets
Send Inquiry

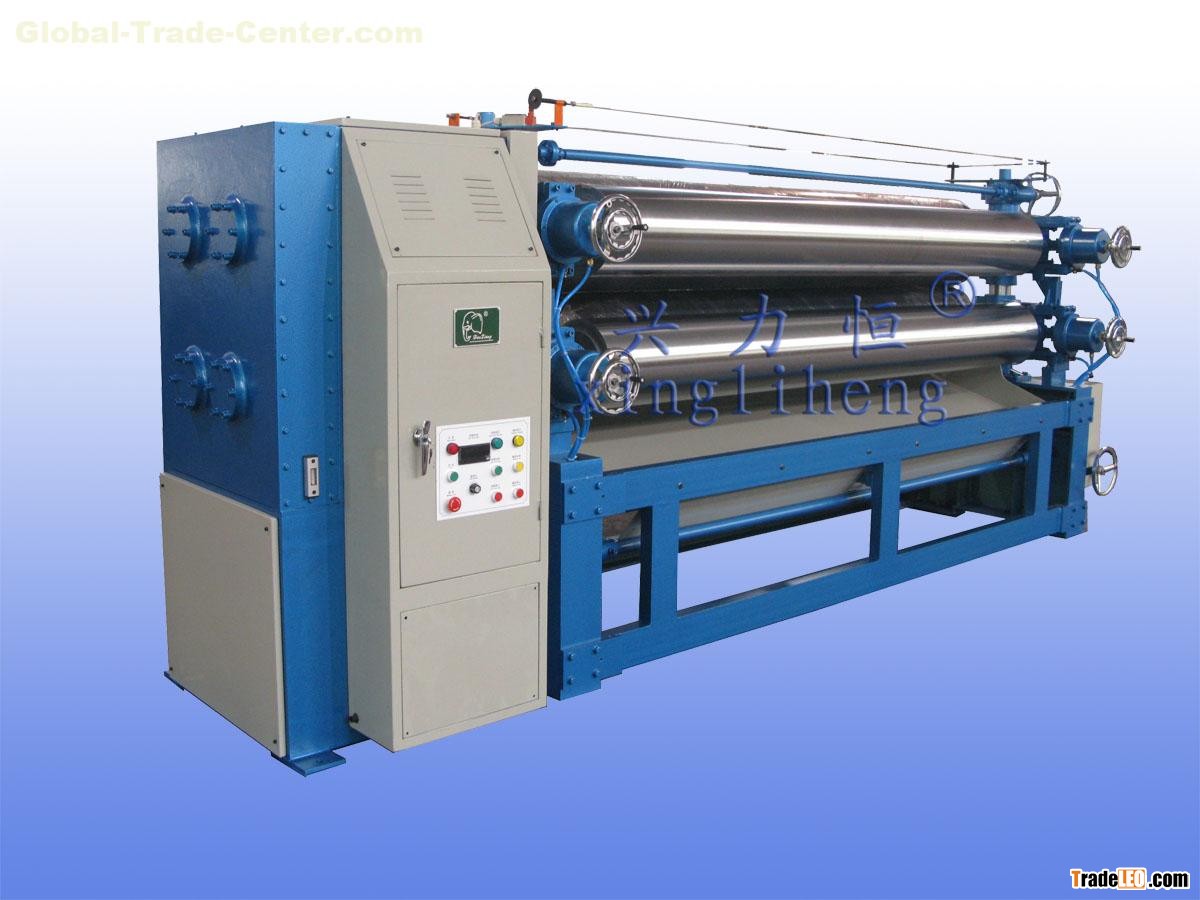

Usage: This machine is used to glue core veneers. It is an important machine in plywood production. With the development of new technology, most plywood manufacturers are willing to use 8 ft glue spreader.
Technical parameters:
| Model Items | HBJQ-8 ft |
| Working width mm | 2700 |
| Glue roller mm | 2×Φ418 |
| Doctor roller mm | 2×Φ295 |
| Rotate speed of glue roller rpm | 0~69 |
| Rotate speed of doctor roller rpm | 0~17 |
| Feeding speed m/min | 0~90 |
| Power kw | 7.5kw+0.75kw=8.25 |
| Exterior dimensions (l×w×h) mm | 4500×2950×1850 |
| Net weight ㎏ | 5500 |
