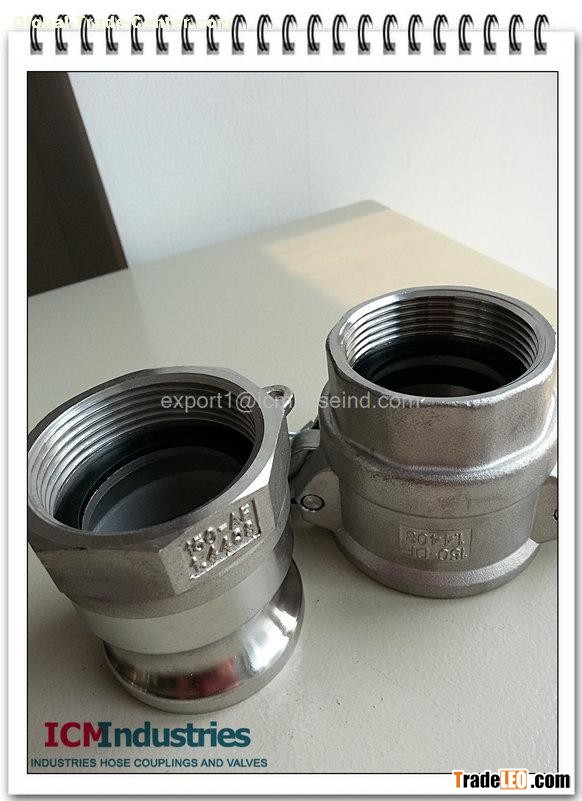

DIN Camlock coupling: DIN 2828 brass camlock coupling, EN 14420-7 Stainless camlock coupling

DIN2828 (EN14420-7)  Cam and Groove type A, C(smooth/serrated hose shank), D, E(smooth/serrated hose shank);

Material: Stainless steel (ss304/ss316), Hot stamped Brass and Gravity casting Aluminium.

Size: 3/4"-4"

Seal: NBR, BUNA, EPDM, VITON

Introduction:

The European standard EN 14420-7 was approved by CEN in September 2004, and was applied to cam & groove couplings manufactured to American “military specification” MIL-C-27487 / A-A-59326A.  This American standard does not apply o the connection side, but only to the coupling side.  Other parts like levers, bolts, rings and seals are not standardized.

Cam & groove couplings produced to EN 14420-7 are interchangeable with those produced to the original MIL-C-27487 standard, but differ in terms of hose tail design, thread, part number etc.  A flat thread seal has been added to the female threaded parts, and a smooth hose shank complying with EN 14420-2 / DIN 2817 has been added for assembly with RK safety clamps complying with EN 14420-3 / DIN 2817.

N.B.: European standard EN 14420-7 replaces DIN 2828 but does not replace MIL-C-27487 and Federal Mil A-A-59326A.

We aslo sell hose couplings (Camlock, Sotrz, Bauer Guillenmin couplings ), stainless steel pipe fittings, valves, flanges, sanitary fittings and valves and so on.
