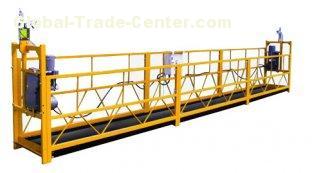

ZLP1000 2.5m*3 1000 kg Safe Working Suspended Platform Cradle
Descrition:
A kind of Temporarily Installed Suspended Access Equipment, also known as Suspended Platform or Temporary Access Equipment, is a lightweight aluminum-made object capable of carrying persons onto a certain height so as to facilitate the aerial work, such as maintenance, decoration, cleaning, etc.
It is easy for operation, flexible for moving, reliable in safety. Besides, it is not necessary to build scaffolding in the construction, the efficiency will be promoted and the cost will be reduced.Therefore, Shenxi ZLP series versatile knock-down platforms provides workers safer, easier and more efficient platform access.
Specifications:
| Item | Parameters | |||
| Rated capacity | 1000 kg | |||
| Rated speed | 8.3 m/min | |||
| Platform length | 2.5m*3 | |||
| Steel rope | 6*19W+IWS-8.6 | |||
| Hoist | Hoist model | LTD10 | ||
| Rated lifting force | 8 kN | |||
| Motor | Model | YEJ100L1-4 | ||
| Power | 3 kW | |||
| Phase | 3 Phase | |||
| Speed | 1420 r/m | |||
| Brake force moment | 30 Nm | |||
| Safety lock | Configuration | Anti-tilting | ||
| Permission force of impact | 30 kN | |||
| Locking Cable Distance | 100mm | |||
| Locking Cable Angle | 3°8° | |||
| Suspension mechanism | Front beam overhang | 1.3-1.7 m | ||
| Height adjustment | 1.365 -1.925 m | |||
| Weight | Lifting part (including hoist, safety lock and electric control system) | Steel Platform | 600 kg |
|
