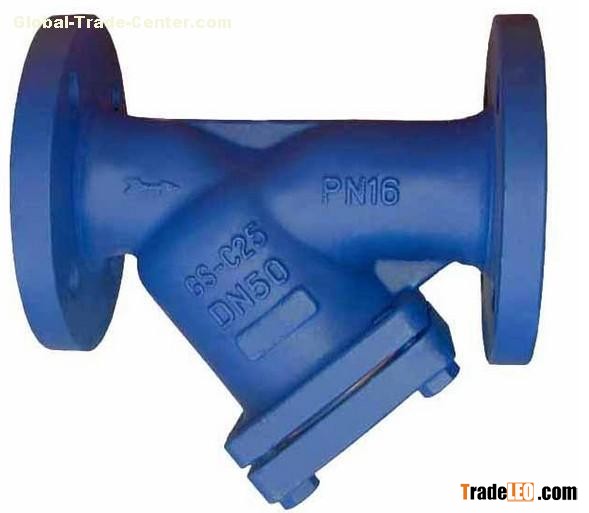

DIN Y Type Strainer:

For such sectors as hot oil system, power station, steam system, hot water system, thermal power plant, natural gas supply system, water circulation system and refrigeration system.

Application Standard:

Face to face dimension Standard: DIN 3205-F1

Flanged Standard: DIN2531-2545

Shell Pressure Test: 1.5 X PN

Strainer Specifications:

Water Medium:  20-40 Mesh

Air Medium:    40-100 Mesh

Oil Medium:     10-180 Mesh

Main Parts Material:

1. Body: GS-C25, CF8, CF3
2. Mesh: F304, F316
3. Gasket: Asbestos + S.S, PTFE
4. Bonnet: GS-C25, CF8, CF3
5. Hexagon nut: ASTM A193 2H, A293-8, A193-8M
6. Bolt:  ASTM A193 B7, A193-B8, A193-B8M
7. Screw Plut: F304, F316
