. Name of Machine:

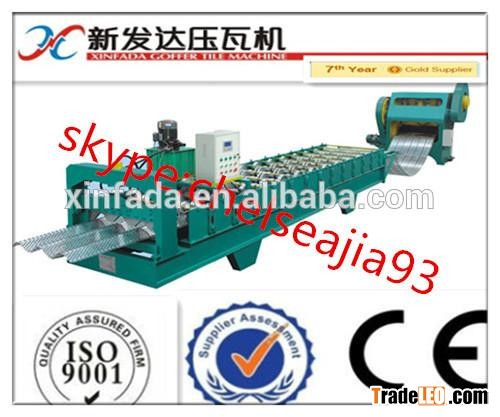

Dust proof roll forming machine automatic dust shield roll forming machine Clean Dust Machine

2. Production flow chart :

Uncoiling--- Colored steel coil feeding--- Punching- Roll forming---Cut to length---Final product

<img src="http://g01.s.alicdn.com/kf/HTB1NGovGVXXXXaAaXXXq6xXFXXXu/200065246/HTB1NGovGVXXXXaAaXXXq6xXFXXXu.jpg" alt="Dust proof roll forming machine automatic dust shield roll forming machine Clean Dust Machine" ori-width="1000" ori-height="234">

1). Un-coiler (Optional devices)

2). Feeding device

3). Roll-forming device

4). Hydraulic cutter

5). PLC control system

6). Hydraulic station

7). Stacker (Optional devices)

(1).profie Of Dust proof roll forming machine automatic dust shield roll forming machine Clean Dust Machine

<img src="http://g01.s.alicdn.com/kf/HTB1V7sBGVXXXXaiXpXXq6xXFXXXa/200065246/HTB1V7sBGVXXXXaiXpXXq6xXFXXXa.jpg" alt="Dust proof roll forming machine automatic dust shield roll forming machine Clean Dust Machine" ori-width="398" ori-height="332">

(2). Parameters of Dust proof roll forming machine automatic dust shield roll forming machine Clean Dust Machine

<1>. Step of forming roller : 17steps

<2>. Diameter of shaft(solid shaft): 75mm

<3>. Material of shaft (solid shaft): (high grade) 45# Steel, quenching and tempering treatment

<4>. Material of roller: 45# Steel

<5>. Treatment of roller : hard chromize coated

<6>. Reducer : 5# cycloid reducer (high grade)

<7>. Power of main motor : 4KW

<8>. Voltage: 380V/50Hz/3phase

<9>.Line speed : about 8-10m/min

<10>. PLC: DELTA(TAIWAN)

<11>. Frequency converter : DELTA(TAIWAN)
