Brand:SOSN

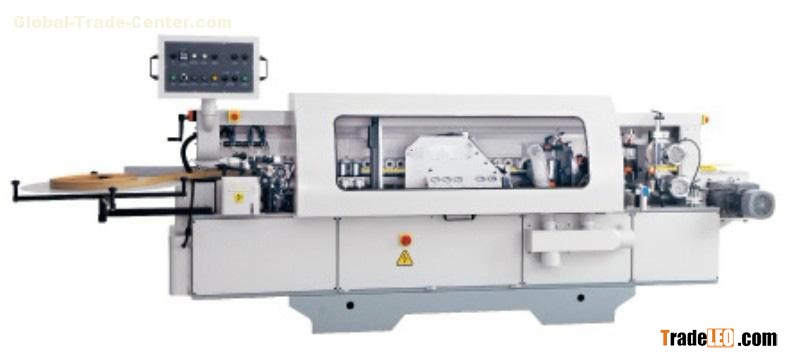

Model:SEB600
MOQ:1 Sets
Feature:
1.Body,pressure feed beam solid special heavy-duty steel and special strict heat treatment process,equipment process, equipment operation more stable, to ensure stability
2.100% of the high-frequency motor except Italy
3.100%of the electrical components provided by the international brand SIEMENS, SCHNEIDER, the OMRON,DELTA,LG, and so on
4.100% of the pneumatic components by Taiwan AIRTAC provided
5.The humane folder system in the Edge of the thickness change operation easier
Main Technical data:
| Panel length | Min 120mm(PVC) |
| Panel width | Min 60mm |
| Panel thickness | 10-60mm |
| Edge width | 15-65mm |
| Edge thickness | 0.4~15mm |
| Feeding speed | 9~19m/min |
| In-put voltage | 380v |
| In-put frequency | 50HZ |
| Out-put frequency | 200HZ |
| Total power consumption | 5.98KW |
| Required air pressure | 0.7Mpa |
| Net weight | 1390kg |
| Overall dimension | 3705x850x1380mm |
