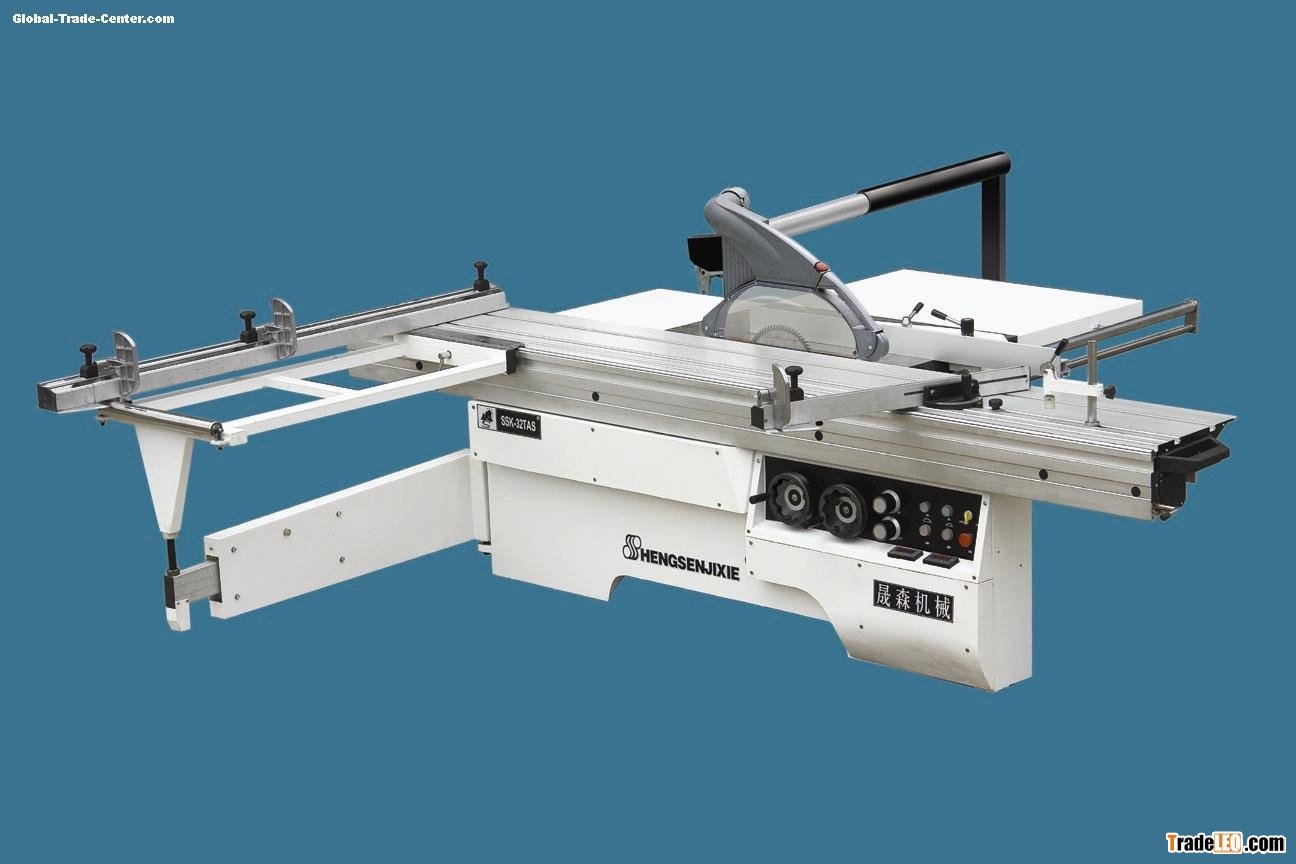

Brand:SOSN
Model:SK-32TAS
MOQ:1 Sets
Feature:
1.Blade up&down movement by electric control.
2. digital display for saw blade inclination angle(0-45 degree)
3. wide duralumin sliding table
4. high precision steel guide
Main technical parameter:
| Dimension of sliding table | 3200x435mm |
| Gross cut capacity | 3200mm |
| Width of cut between saw blade and rip fence | 1250mm |
| Saw blade diameter | 300mm |
| scoring saw blade diameter | 120mm |
| Speed of main saw spindle | 4500/6000rpm |
| Speed of scoring saw blade | 8000r/min |
| Tilting saw blade | 45 degree and 90 degree |
| Main motor | 5.5kw |
| Scoring motor | 1.1kw |
| Height of cut | 85mm |
| Main spindle diameter | 30mm |
| Net weight | 800kgs |
| Gross weight(with plywood wooden package) | 850kgs |
| Overall dimensions | 3200x3150X900mm |
