interlocking kelly bar
Now ShenWei Kelly bars have been supplied to BAUER, SOLIMEC, IMT, CMV, MAIT, CASANGRADE ,TESCAR and other drilling rigs imported or locally-made, exported to many countries such as Germany, Malaysia ,Turkey, India, Russia, Ukraine all over the world. These kelly bars are successful used even in the toughest operating conditions.
Product Parameter.
| Model | Out diameter (mm) | Length(m) | No.of sections | Nominal Torque(KN.m) |
| SW/JS575-5×17.5 | 575 | 17.5 | 5 | 500 |
| Nominal drilling depth(m) | Damper | Pressure form | Weight(T) | Drilling rigs matched with |

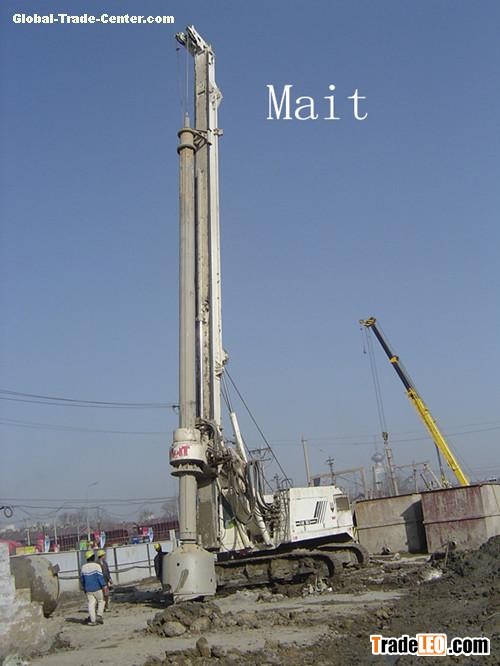

| 80 | Spring/ rubber ring | inerlocking | 17.69 | Mait |
Product details.
Shenwei Interlocking Kelly bar of Common Model.
Shenwei Friction Kelly bar of Common Model
Common model of kelly bar matched with BAUER and SOILMEC drilling machine.
| Model | Out diameter (mm) | Length(m) | No.of sections | Nominal Torque(KN.m) | Matched with |
| SW-JS394-3*16.2 | 394 | 16.2 | 3 | 360 | BAUER BG25 |
| SW-JS394-4*16.2 | 394 | 16.2 | 4 | 280 | BAUER BG25 |
| SW-JS406-4*15.5 | 406 | 15.5 | 4 | 300 | SLILMEC SR70 |
| SW-MZ406-5*16.2 | 406 | 16.2 | 5 | 280 | BAUER BG25 |
| SW-JS470-4*25 | 470 | 25 | 4 | 400 | BAUER BG40 |
| SW-JS559-5*20.4 | 559 | 20.4 | 5 | 480 | BAUER BG48 |
Projects by Shenwei
