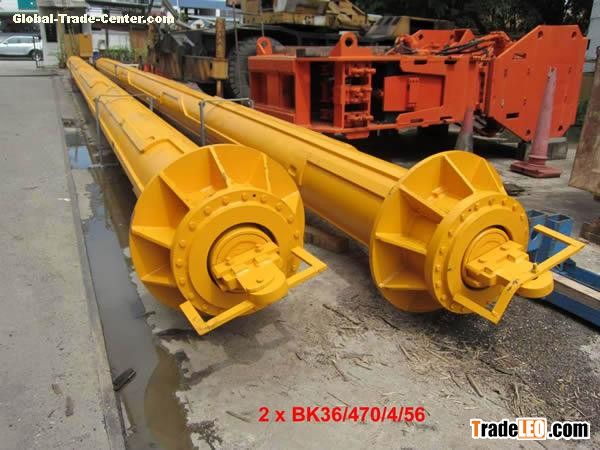

drilling tools kelly bar for Pile driving
Now ShenWei Kelly bars have been supplied to BAUER, SOLIMEC, IMT, CMV, MAIT, CASANGRADE ,TESCAR and other drilling rigs imported or locally-made, exported to many countries such as Germany, Malaysia ,Turkey, India, Russia, Ukraine all over the world. These kelly bars are successful used even in the toughest operating conditions.
Shenwei Interlocking Kelly bar of Common Model.
Shenwei Friction Kelly bar of Common Model
Common model of kelly bar matched with BAUER and SOILMEC drilling machine.
| Model | Out diameter (mm) | Length(m) | No.of sections | Nominal Torque(KN.m) | Matched with |
| SW-JS394-3*16.2 | 394 | 16.2 | 3 | 360 | BAUER BG25 |
| SW-JS394-4*16.2 | 394 | 16.2 | 4 | 280 | BAUER BG25 |
| SW-JS406-4*15.5 | 406 | 15.5 | 4 | 300 | SLILMEC SR70 |
| SW-MZ406-5*16.2 | 406 | 16.2 | 5 | 280 | BAUER BG25 |
| SW-JS470-4*25 | 470 | 25 | 4 | 400 | BAUER BG40 |
| SW-JS559-5*20.4 | 559 | 20.4 | 5 | 480 | BAUER BG48 |
