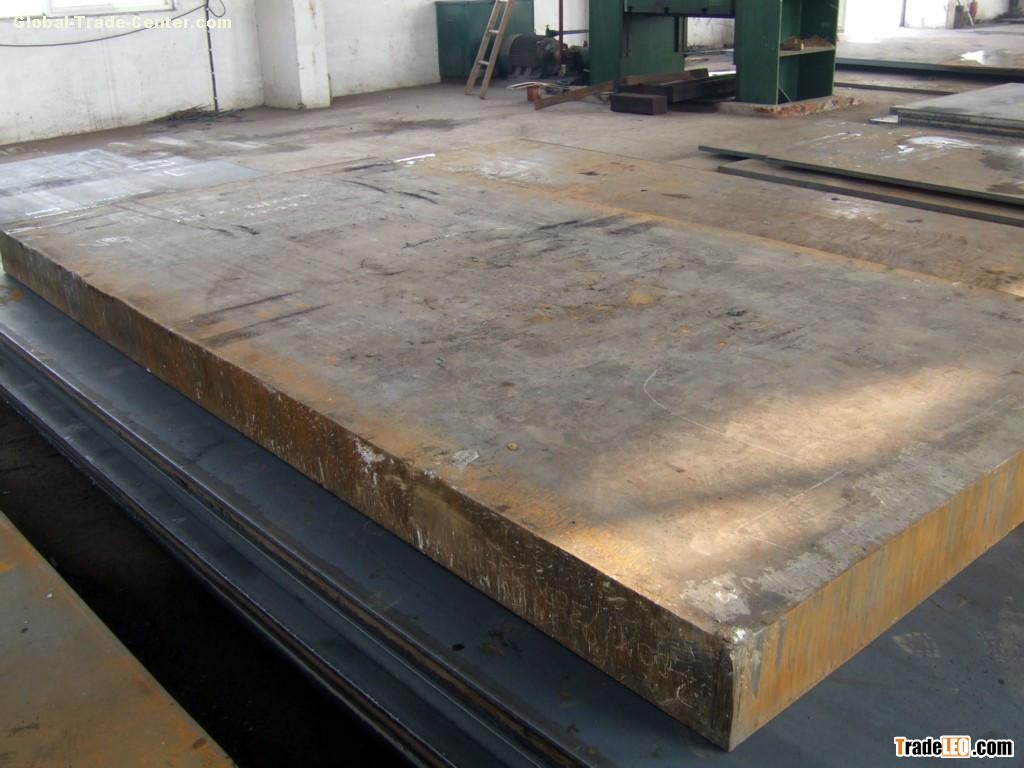

Carbon structural mild steel plate sheet ASTM A36 material
| A36 ASTM | Comparision of steel grades | |
| GB | Q235B | |
| BS 4360 | 40(A)B | |
| CSAG40-21 | 230G | |
| IS | IS 226 | |
| JIS 3106 | SM 400 A | |
| ISO 630 | Fe 360B | |
| ASTM | A 36/A 283 C | |
Chemical Composition
| Grade | Chemical Composition , % by weight | ||||
| C. max | Si. Max | Manganese | P. max | S. max | |
| A36 | 0.25 | 0.4 | 0.8-1.2 | 0.035 | 0.035 |
Mechnical Propertites
| Grade | Yield Strength min (Mpa) | Tensile Strength Mpa | Elongation min. % | Impact Resistance min.(J) | |||
| A36 | Thickness <16mm | Thickness ≥16mm | Thickness <5mm | Thickness 5-16mm | Thickness ≥16mm | ||
| 250 | 245 | 400-550 | 21 | 17 | 21 | - | |
