1.      Size: 4" to 48"

2.      Safety Factor: 2.0 to 1

3.      Ultimate Load: 6000lbs, 7200lbs

4.      Material: 20# steel/20Mn, C1050# Steel/50Mn

5.      Surface Treatment: Galvanized or not

6 ultimate load

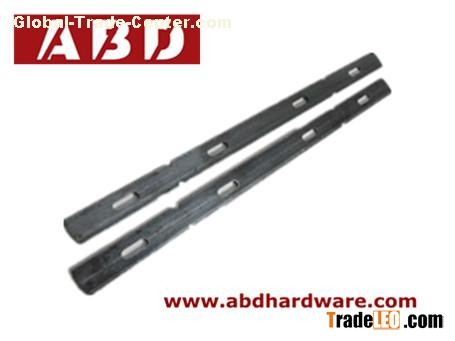

Standard x flat tie

1>    ultimate load 6000ibs 2>safety factor: 2.0 to 1(3000ibs) 3> wall thickness:4’’-8’’

Heavy duty flat tie

1>    ultimate load 7000ibs 2>safety factor: 2.0 to 1(3500ibs) 3> wall thickness:4’’-8’’

7. Identification: ISO9001: 2000

8. Package:100pcs/box

9. Using(1) Used with wedge bolts to tighten adjoining forms; As wall tie used with pin and wedge to fix formwork in building construction; Construction materials hardware, Concrete formwork normal wall ties.

          (2) It is used for accessories when casting concrete together with the flat tie. Construction formwork accessories hardware building fastener

wedge used with wall tie, pin, wedge bolt to fix formwork.
